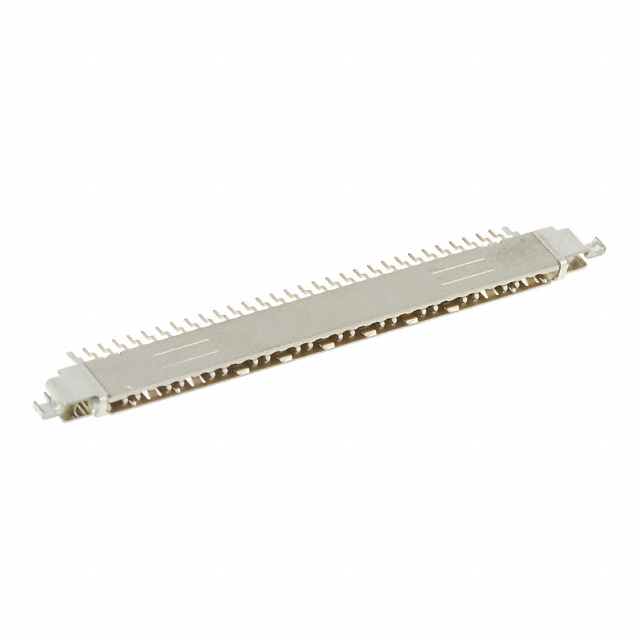

MDF76KBW-30S-1H(55)

Obsolete

Hirose Electric USA, Inc.

BOARD CONNECTOR, 30 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDF76KBW-30S-1H(55)

Obsolete

Hirose Electric USA, Inc.

BOARD CONNECTOR, 30 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.039 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BEIGE INSULATOR, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDF76KBW-30S-1H(55)

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Material	Phosphor Bronze
Contact Type	Center Strip Contact
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Beige
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Board Cutout, Right Angle, Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Style	Board to Cable/Wire
Termination	Solder

MDF76 Series

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Number of Rows	Contact Termination	Color	Connector Type	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Insulation Material	Contact Finish - Post	Features	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Current Rating (Amps)	Applications	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Insulation Color
Hirose Electric USA, Inc. MDF76KBW-30S-1H(78)
Hirose Electric USA, Inc. MDF76LBRW-30S-1H(58)
Hirose Electric USA, Inc. MDF76-30P-1C	Free Hanging (In-Line)	85 °C	-40 °C	Contacts Not Included	1	Crimp	Beige	Plug	Non-Gendered	0.039 in	1 mm	30	Nylon Polyamide (PA)
Hirose Electric USA, Inc. MDF76KBW-30S-1H(55)	Board Cutout Right Angle Surface Mount	85 °C	-40 °C		1			Receptacle	Center Strip Contact			30	Nylon Polyamide (PA)	Tin	Solder Retention	Board to Cable/Wire	1 çm	39.4 çin	Phosphor Bronze	Solder	Gold	12 µin	0.3 µm	UL94 V-0	Varies by Wire Gauge	General Purpose	0.039 in	1 mm	Push-Pull	All	Beige

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MDF76 Series

30 Position Receptacle Connector 0.039" (1.00mm) Board Cutout, Surface Mount, Right Angle Gold
