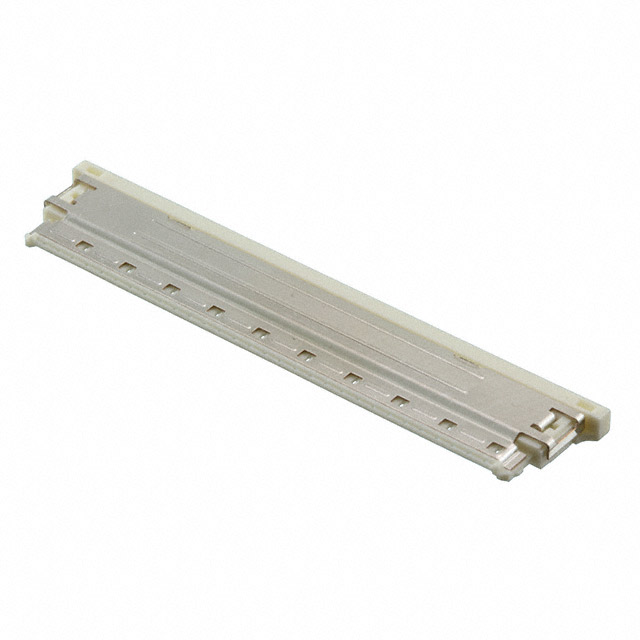

MDF76-30P-1C

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 30POS 1.00MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PLUG HSG 30POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Number of Rows	Contact Termination	Color	Connector Type	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Insulation Material	Contact Finish - Post	Features	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Current Rating (Amps)	Applications	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Insulation Color
Hirose Electric USA, Inc. MDF76KBW-30S-1H(78)
Hirose Electric USA, Inc. MDF76LBRW-30S-1H(58)
Hirose Electric USA, Inc. MDF76-30P-1C	Free Hanging (In-Line)	85 °C	-40 °C	Contacts Not Included	1	Crimp	Beige	Plug	Non-Gendered	0.039 in	1 mm	30	Nylon Polyamide (PA)
Hirose Electric USA, Inc. MDF76KBW-30S-1H(55)	Board Cutout Right Angle Surface Mount	85 °C	-40 °C		1			Receptacle	Center Strip Contact			30	Nylon Polyamide (PA)	Tin	Solder Retention	Board to Cable/Wire	1 çm	39.4 çin	Phosphor Bronze	Solder	Gold	12 µin	0.3 µm	UL94 V-0	Varies by Wire Gauge	General Purpose	0.039 in	1 mm	Push-Pull	All	Beige

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Rectangular Connectors - Housings Plug Beige 0.039" (1.00mm)

Technical documentation and resources

No documents available
