HEAVY DUTY CONNECTOR, M20 SIDE ENTRY, 2 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19300061540 Prod Declaration Cert

19300061540

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M20 SIDE ENTRY, 2 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER

Deep-Dive with AI

DocumentsDatasheet 19300061540 Prod Declaration Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300061540

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	51.2 mm
Size / Dimension [z]	2.016 in
Style	Side Entry
Thread Size	M20

19300061 Series

Part	Lock Location	Style	Housing Color	Thread Size	Housing Finish	Housing Material	Connector Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19300061121	Locking Clip (1) on Hood	Top Entry	Gray	M25	Powder Coated	Aluminum Die Cast	Hood - Panel Mount	3.165 in	80.4 mm	4.094 "	2.776 "	70.5 mm	104 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19300061440	Locking Clip (1) on Base Bottom	Top Entry	Gray	M20	Powder Coated	Aluminum Die Cast	Hood	2.106 "	53.5 mm	2.362 in	1.693 in	43 mm	60 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19300061541	Locking Clip (1) on Base Bottom	Side Entry	Gray	M25	Powder Coated	Aluminum Die Cast	Hood	2.016 in		2.362 in	1.693 in		60 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	51.2 mm	43 mm
HARTING Technology Group 19300061122	Locking Clip (1) on Hood	Top Entry	Gray	M32	Powder Coated	Aluminum Die Cast	Hood - Panel Mount	3.165 in	80.4 mm	4.094 "	2.776 "	70.5 mm	104 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19300061540	Locking Clip (1) on Base Bottom	Side Entry	Gray	M20	Powder Coated	Aluminum Die Cast	Hood	2.016 in		2.362 in	1.693 in		60 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	51.2 mm	43 mm
HARTING Technology Group 19300061295	Locking Clip (1) on Base Bottom	Side Entry	Gray	M20	Powder Coated	Aluminum Die Cast	Base - Box Mount	2.028 in	51.5 mm	3.228 in	2.047 "	52 mm	82 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.00
		10	$ 16.15
		25	$ 15.14
		50	$ 14.42
		100	$ 13.73
		250	$ 12.87
		500	$ 12.26
Newark	Each	1	$ 17.06
		10	$ 15.46
		25	$ 14.42
		50	$ 13.66
		100	$ 12.80
		250	$ 12.42

Description

General part information

19300061 Series

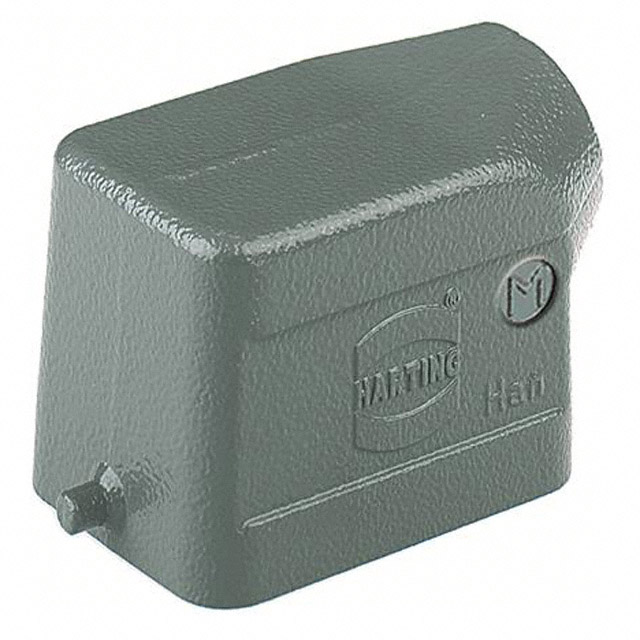

The 19300061540 is a Han B Side Entry Hood, 6B size, M20. cable entry size. Single locking lever and low construction. Powder coated aluminium die cast housing and polycarbonate + stainless steel locking lever.
