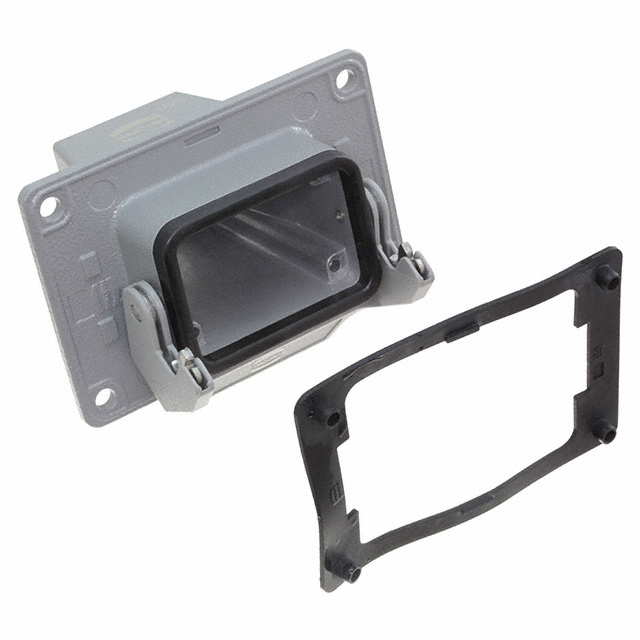

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 6B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19300061121 Prod Declaration Cert +1

19300061121

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 6B

Deep-Dive with AI

DocumentsDatasheet 19300061121 Prod Declaration Cert +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300061121

Connector Type	Hood - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	4.094 "
Size / Dimension [x]	104 mm
Size / Dimension [y]	2.776 "
Size / Dimension [y]	70.5 mm
Size / Dimension [z]	3.165 in
Size / Dimension [z]	80.4 mm
Style	Top Entry
Thread Size	M25

19300061 Series

Part	Lock Location	Style	Housing Color	Thread Size	Housing Finish	Housing Material	Connector Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]
HARTING Technology Group 19300061121	Locking Clip (1) on Hood	Top Entry	Gray	M25	Powder Coated	Aluminum Die Cast	Hood - Panel Mount	3.165 in	80.4 mm	4.094 "	2.776 "	70.5 mm	104 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19300061440	Locking Clip (1) on Base Bottom	Top Entry	Gray	M20	Powder Coated	Aluminum Die Cast	Hood	2.106 "	53.5 mm	2.362 in	1.693 in	43 mm	60 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19300061541	Locking Clip (1) on Base Bottom	Side Entry	Gray	M25	Powder Coated	Aluminum Die Cast	Hood	2.016 in		2.362 in	1.693 in		60 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	51.2 mm	43 mm
HARTING Technology Group 19300061122	Locking Clip (1) on Hood	Top Entry	Gray	M32	Powder Coated	Aluminum Die Cast	Hood - Panel Mount	3.165 in	80.4 mm	4.094 "	2.776 "	70.5 mm	104 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
HARTING Technology Group 19300061540	Locking Clip (1) on Base Bottom	Side Entry	Gray	M20	Powder Coated	Aluminum Die Cast	Hood	2.016 in		2.362 in	1.693 in		60 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	51.2 mm	43 mm
HARTING Technology Group 19300061295	Locking Clip (1) on Base Bottom	Side Entry	Gray	M20	Powder Coated	Aluminum Die Cast	Base - Box Mount	2.028 in	51.5 mm	3.228 in	2.047 "	52 mm	82 mm	6B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C
