13-000171

Active

Amphenol CONEC

CONN D-SUB RCPT 7POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

13-000171

Active

Amphenol CONEC

CONN D-SUB RCPT 7POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	13-000171

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	20 A, 7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A) - 7W2
Voltage Rating	250 VDC
Wire Gauge	20 AWG
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	12 AWG

13-0001 Series

Part	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Features	Connector Style	Shell Size, Connector Layout	Voltage Rating	Dielectric Material	Flange Feature	Contact Type	Contact Material	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Current Rating (Amps)	Connector Type	Number of Rows	Material Flammability Rating	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Shell Finish Thickness	Shell Finish Thickness	Note	Mating Cycles	Backset Spacing	Backset Spacing
Amphenol CONEC 13-000121	7	2	Gold	Board Lock Grounding Indents	Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	4-40 Board Side	Signal and Power	Copper Alloy	Through Hole	Green	0.76 Ám	30 Áin	Solder	7.5 A 20 A	Male Pins Plug	2	UL94 V-0
Amphenol CONEC 13-000141	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 20 A	Receptacle Female Sockets	2	UL94 V-0	14 AWG	20 AWG	12 AWG
Amphenol CONEC 13-000111	7	2	Gold	Board Lock Grounding Indents	Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side	Signal and Power	Copper Alloy	Through Hole	Green	0.76 Ám	30 Áin	Solder	7.5 A 20 A	Male Pins Plug	2	UL94 V-0
Amphenol CONEC 13-000190	7	2			Combo D-Sub	2 (DA A) - 7W2		Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power		Free Hanging (In-Line)	Black					Receptacle for Female Contacts	2					8 µm	315 µin	Contacts Not Included	250
Amphenol CONEC 13-000101	7	2	Gold	Board Lock Grounding Indents Mounting Brackets	Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Signal and Power	Copper Alloy	Board Edge Right Angle Through Hole	Green	0.76 Ám	30 Áin	Solder	7.5 A 40 A	Male Pins Plug	2	UL94 V-0								0.458 in	11.63 mm
Amphenol CONEC 13-000171	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 20 A	Receptacle Female Sockets	2	UL94 V-0	14 AWG	20 AWG	12 AWG
Amphenol CONEC 13-000181	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 10 A	Receptacle Female Sockets	2	UL94 V-0	20 AWG	20 AWG	16 AWG
Amphenol CONEC 13-000151	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 10 A	Receptacle Female Sockets	2	UL94 V-0	20 AWG	20 AWG	16 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	30	$ 15.42

Description

General part information

13-0001 Series

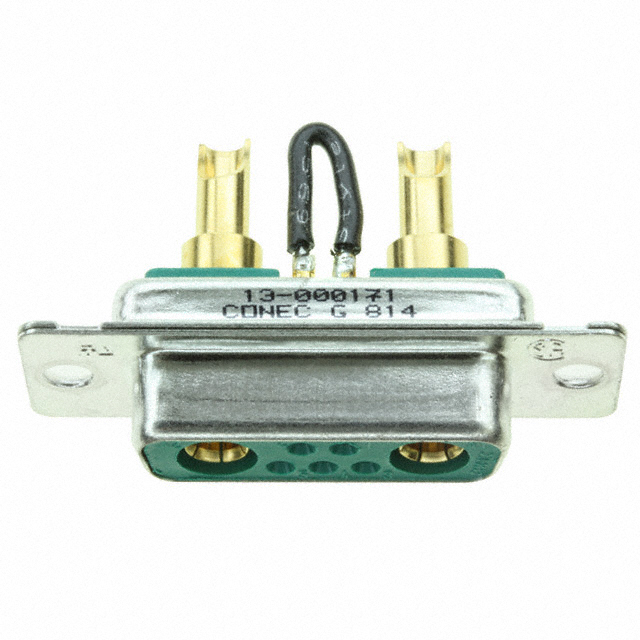

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
