13-000190

Active

Amphenol CONEC

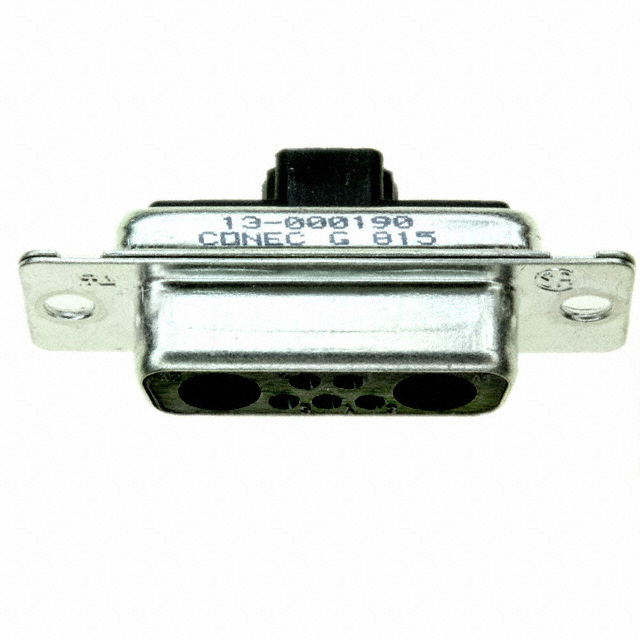

CONN D-SUB HOUSING RCPT 7POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

13-000190

Active

Amphenol CONEC

CONN D-SUB HOUSING RCPT 7POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	13-000190

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle for Female Contacts
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mating Cycles	250
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Shell Finish Thickness	8 µm
Shell Finish Thickness	315 µin
Shell Size, Connector Layout	2 (DA, A) - 7W2

13-0001 Series

Part	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Features	Connector Style	Shell Size, Connector Layout	Voltage Rating	Dielectric Material	Flange Feature	Contact Type	Contact Material	Mounting Type	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Current Rating (Amps)	Connector Type	Number of Rows	Material Flammability Rating	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Shell Finish Thickness	Shell Finish Thickness	Note	Mating Cycles	Backset Spacing	Backset Spacing
Amphenol CONEC 13-000121	7	2	Gold	Board Lock Grounding Indents	Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	4-40 Board Side	Signal and Power	Copper Alloy	Through Hole	Green	0.76 Ám	30 Áin	Solder	7.5 A 20 A	Male Pins Plug	2	UL94 V-0
Amphenol CONEC 13-000141	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 20 A	Receptacle Female Sockets	2	UL94 V-0	14 AWG	20 AWG	12 AWG
Amphenol CONEC 13-000111	7	2	Gold	Board Lock Grounding Indents	Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side	Signal and Power	Copper Alloy	Through Hole	Green	0.76 Ám	30 Áin	Solder	7.5 A 20 A	Male Pins Plug	2	UL94 V-0
Amphenol CONEC 13-000190	7	2			Combo D-Sub	2 (DA A) - 7W2		Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power		Free Hanging (In-Line)	Black					Receptacle for Female Contacts	2					8 µm	315 µin	Contacts Not Included	250
Amphenol CONEC 13-000101	7	2	Gold	Board Lock Grounding Indents Mounting Brackets	Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Signal and Power	Copper Alloy	Board Edge Right Angle Through Hole	Green	0.76 Ám	30 Áin	Solder	7.5 A 40 A	Male Pins Plug	2	UL94 V-0								0.458 in	11.63 mm
Amphenol CONEC 13-000171	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 20 A	Receptacle Female Sockets	2	UL94 V-0	14 AWG	20 AWG	12 AWG
Amphenol CONEC 13-000181	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 10 A	Receptacle Female Sockets	2	UL94 V-0	20 AWG	20 AWG	16 AWG
Amphenol CONEC 13-000151	7	2	Gold		Combo D-Sub	2 (DA A) - 7W2	250 VDC	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)	Signal and Power	Copper Alloy	Free Hanging (In-Line)	Green	0.76 Ám	30 Áin		7.5 A 10 A	Receptacle Female Sockets	2	UL94 V-0	20 AWG	20 AWG	16 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.61
		10	$ 3.28
		25	$ 3.11
		50	$ 3.03
		100	$ 2.89
		250	$ 2.53
		450	$ 2.46
		950	$ 2.09
		2400	$ 1.95

Description

General part information

13-0001 Series

Receptacle for Female Contacts Housing D-Sub, Combo Connector 7 (5 + 2 Power) Position
