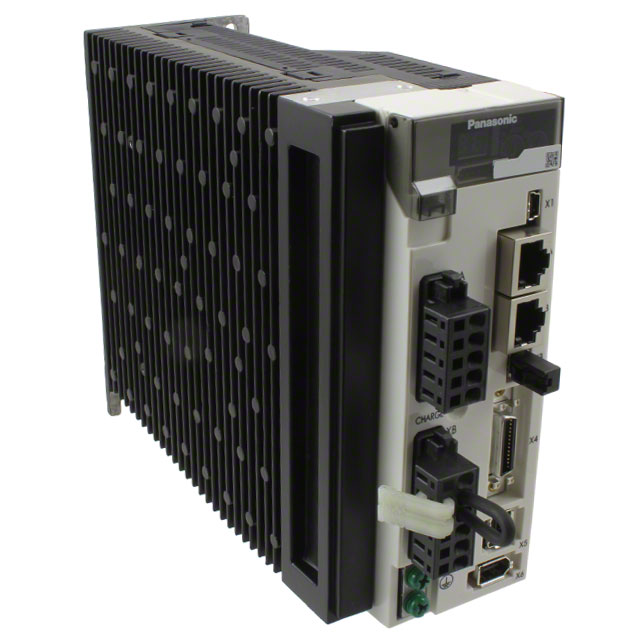

MCDHT3520B01

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 30A 240V LOAD

Deep-Dive with AI

Search across all available documentation for this part.

MCDHT3520B01

Obsolete

Panasonic Industrial Automation Sales

SERVO DRIVER 30A 240V LOAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MCDHT3520B01

Control / Drive Type	Servo AC
Current - Output	30 A
For Use With/Related Products	MINAS A5 Series
Interface	USB, EtherCat
Motor Type	Servo
Mounting Type	Chassis Mount
Type	Module
Voltage - Load	240 V
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	200 VAC
Wattage - Load	750 W
Weight	1.6 kg
Weight	3.6 lbs

MCDHT Series

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	For Use With/Related Products	Mounting Type	Wattage - Load	Type	Motor Type	Voltage - Load	Interface	Weight	Weight	Control / Drive Type	Current - Output
Panasonic Industrial Automation Sales MCDHT3120L01	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3120E	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3120	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3120B01	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3520E	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3520L01	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3520NA1	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3520B01	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3120BA1	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MCDHT Series

Servo AC 200 ~ 240VAC Supply 30A 240V Load

Documents

Technical documentation and resources

No documents available
