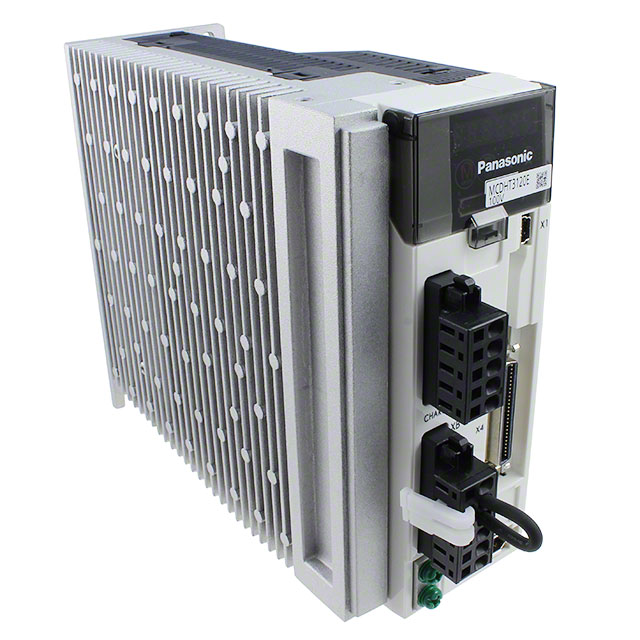

MCDHT3120E
ObsoletePanasonic Industrial Automation Sales
SERVO DRIVER 30A 120V LOAD
Deep-Dive with AI
Search across all available documentation for this part.
MCDHT3120E
ObsoletePanasonic Industrial Automation Sales
SERVO DRIVER 30A 120V LOAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MCDHT3120E |
|---|---|
| Control / Drive Type | Servo AC |
| Current - Output | 30 A |
| For Use With/Related Products | MINAS A5 Series |
| Interface | USB, RS-485, RS-232 |
| Motor Type | Servo |
| Mounting Type | Chassis Mount |
| Type | Module |
| Voltage - Load | 120 V |
| Voltage - Supply [Max] | 120 VAC |
| Voltage - Supply [Min] | 100 VAC |
| Wattage - Load | 750 W |
| Weight | 1.6 kg |
| Weight | 3.6 lbs |
MCDHT Series
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | For Use With/Related Products | Mounting Type | Wattage - Load | Type | Motor Type | Voltage - Load | Interface | Weight | Weight | Control / Drive Type | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 120 V | EtherCat USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 120 V | RS-232 RS-485 USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 120 V | RS-232 RS-485 USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 120 V | EtherCat USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 200 VAC | 240 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 240 V | USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 200 VAC | 240 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 240 V | RS-232 RS-485 USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 200 VAC | 240 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 240 V | RS-232 RS-485 USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 200 VAC | 240 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 240 V | EtherCat USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | MINAS A5 Series | Chassis Mount | 750 W | Module | Servo | 120 V | EtherCat USB | 1.6 kg | 3.6 lbs | Servo AC | 30 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MCDHT Series
Servo AC 100 ~ 120VAC Supply 30A 120V Load
Documents
Technical documentation and resources
No documents available
