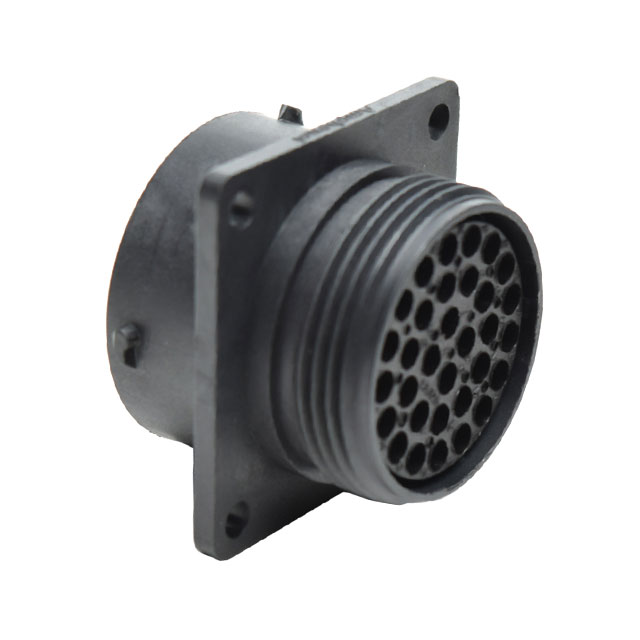

RTS018N32S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 32POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEco|mate® Aquarius™ Flyer ecomate-Family-Flyer-2019 +1

RTS018N32S03

Active

Amphenol Sine Systems Corp

CONN RCPT HSG FMALE 32POS PNL MT

Deep-Dive with AI

DocumentsEco|mate® Aquarius™ Flyer ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS018N32S03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 Connector, 1 Gasket
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Unshielded
Type	For Female Sockets

RTS018 Series

Part	Shielding	Housing Color	Note	Mounting Feature	Material Flammability Rating	Contact Shape	Connector Type	Fastening Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Includes	Contact Type	Number of Positions	Insert Material	Type	Contact Size	Orientation	Shell Size - Insert	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Accessory Type	For Use With/Related Products	Color	Material	Shell Size - Insert
Amphenol Sine Systems Corp RTS018N23S03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C	18	23	1 Connector 1 Gasket	Crimp	23	Thermoplastic	For Female Sockets	16	N
Amphenol Sine Systems Corp RTS018N8SHEC03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C			1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Crimp	8	Thermoplastic	For Female Sockets	2.5 mm	N	18-8	Backshell
Amphenol Sine Systems Corp RTS018N32PHEC03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C			1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Crimp		Thermoplastic	For Male Pins	20	N		Backshell	32	18
Amphenol Sine Systems Corp RTS018N23SHEC03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C	18	23	1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Crimp	23	Thermoplastic	For Female Sockets	16	N		Backshell
Amphenol Sine Systems Corp RTS018N32SHEC03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C			1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal	Crimp		Thermoplastic	For Female Sockets	20	N		Backshell	32	18
Amphenol Sine Systems Corp RTS018N32S03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C			1 Connector 1 Gasket	Crimp		Thermoplastic	For Female Sockets	20	N			32	18
Amphenol Sine Systems Corp RTS018DCG																						Contains Strap with Ring Dust Tight Waterproof			Cap (Cover) Dust	Receptacle Connectors	Black	Thermoplastic	18
Amphenol Sine Systems Corp RTS018N8P03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C			1 Connector 1 Gasket	Crimp	8	Thermoplastic	For Male Pins	2.5 mm	N	18-8
Amphenol Sine Systems Corp RTS018N23P03	Unshielded	Black	Contacts Not Included	Flange	UL94 V-0	Circular	Receptacle Housing	Bayonet Lock	IP67 IP69K	125 °C	-40 °C	18	23	1 Connector 1 Gasket	Crimp	23	Thermoplastic	For Male Pins	16	N

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.14
		10	$ 8.10
		25	$ 7.79
		50	$ 7.48
		200	$ 7.31

Description

General part information

RTS018 Series

32 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Eco|mate® Aquarius™ Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
