RTS018N23SHEC03
ActiveAmphenol Sine Systems Corp

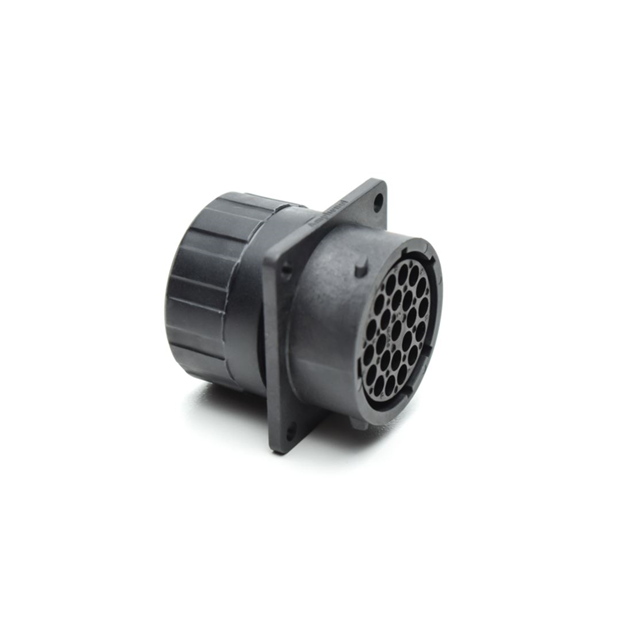

CONN RCPT HSG FMALE 23POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RTS018N23SHEC03
ActiveAmphenol Sine Systems Corp
CONN RCPT HSG FMALE 23POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RTS018N23SHEC03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Housing Color | Black |
| Includes | 1 Backshell, 1 Seal, 1 Connector, 1 Ring, 1 Gasket, 1 O-Ring |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 23 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Size - Insert [Max] [custom] | 23 |
| Shell Size - Insert [Min] [custom] | 18 |
| Shielding | Unshielded |
| Type | For Female Sockets |
RTS018 Series
| Part | Shielding | Housing Color | Note | Mounting Feature | Material Flammability Rating | Contact Shape | Connector Type | Fastening Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert [Min] [custom] | Shell Size - Insert [Max] [custom] | Includes | Contact Type | Number of Positions | Insert Material | Type | Contact Size | Orientation | Shell Size - Insert | Features | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Accessory Type | For Use With/Related Products | Color | Material | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 18 | 23 | 1 Connector 1 Gasket | Crimp | 23 | Thermoplastic | For Female Sockets | 16 | N | |||||||||
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | Crimp | 8 | Thermoplastic | For Female Sockets | 2.5 mm | N | 18-8 | Backshell | |||||||||
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | Crimp | Thermoplastic | For Male Pins | 20 | N | Backshell | 32 | 18 | |||||||||
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 18 | 23 | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | Crimp | 23 | Thermoplastic | For Female Sockets | 16 | N | Backshell | ||||||||
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 1 Backshell 1 Connector 1 Gasket 1 O-Ring 1 Ring 1 Seal | Crimp | Thermoplastic | For Female Sockets | 20 | N | Backshell | 32 | 18 | |||||||||
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 1 Connector 1 Gasket | Crimp | Thermoplastic | For Female Sockets | 20 | N | 32 | 18 | ||||||||||
Amphenol Sine Systems Corp | Contains Strap with Ring Dust Tight Waterproof | Cap (Cover) Dust | Receptacle Connectors | Black | Thermoplastic | 18 | |||||||||||||||||||||||
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 1 Connector 1 Gasket | Crimp | 8 | Thermoplastic | For Male Pins | 2.5 mm | N | 18-8 | ||||||||||
Amphenol Sine Systems Corp | Unshielded | Black | Contacts Not Included | Flange | UL94 V-0 | Circular | Receptacle Housing | Bayonet Lock | IP67 IP69K | 125 °C | -40 °C | 18 | 23 | 1 Connector 1 Gasket | Crimp | 23 | Thermoplastic | For Male Pins | 16 | N |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.99 | |
| 10 | $ 7.19 | |||
| 25 | $ 6.77 | |||
| 50 | $ 6.60 | |||
| 200 | $ 6.42 | |||
| 400 | $ 6.11 | |||
Description
General part information
RTS018 Series
23 Position Circular Connector Receptacle Housing Panel Mount Backshell
