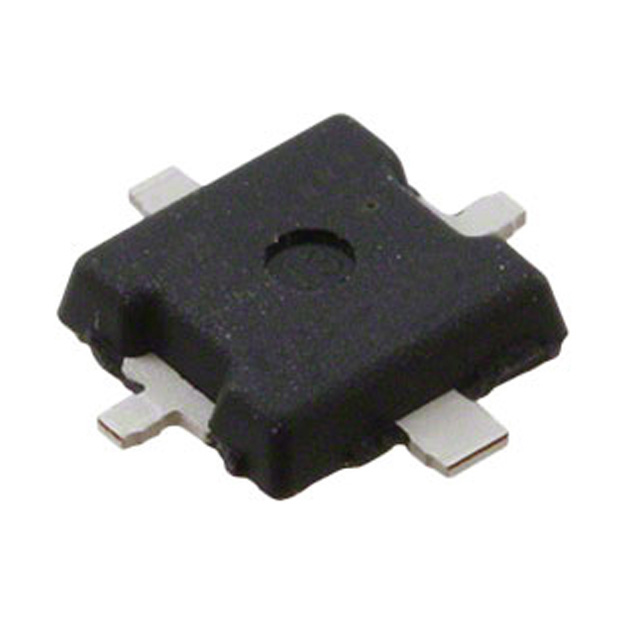

NE5550779A-A

Obsolete

CEL

RF MOSFET LDMOS 7.5V 79A

Search across all available documentation for this part.

Obsolete

CEL

RF MOSFET LDMOS 7.5V 79A

Technical Specifications

Parameters and characteristics for this part

Part	Power - Output	Current Rating (Amps)	Voltage - Rated	Gain	Voltage - Test	Package / Case	Supplier Device Package	Current - Test	Frequency	Technology	Configuration
CEL NE5550979A-A	38.6 dBm	3 A	30 V	22 dBi	7.5 V	4-SMD Flat Leads	79A	200 mA	900 MHz
CEL NE5550234-T1-AZ	32.2 dBm	600 mA	30 V		7.5 V	TO-243AA	3-PowerMiniMold	40 mA	900 MHz	MOSFET (Metal Oxide)	N-Channel
CEL NE5550279A-A	33 dBm	600 mA	30 V	22.5 dB	7.5 V	4-SMD Flat Leads	79A	40 mA	900 MHz
CEL NE5550779A-A	38.5 dBm	2.1 A	30 V	22 dBi	7.5 V	4-SMD Flat Leads	79A	140 mA	900 MHz
CEL NE5550779A-T1-A	38.5 dBm	2.1 A	30 V	22 dBi	7.5 V	4-SMD Flat Leads	79A	140 mA	900 MHz
CEL NE5550279A-T1-A	33 dBm	600 mA	30 V	22.5 dB	7.5 V	4-SMD Flat Leads	79A	40 mA	900 MHz
CEL NE5550234-AZ	32.2 dBm	600 mA	30 V		7.5 V	TO-243AA	3-PowerMiniMold	40 mA	900 MHz	MOSFET (Metal Oxide)	N-Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 7.5 V 140 mA 900MHz 22dB 38.5dBm 79A

Technical documentation and resources

No documents available
