NE5550234-T1-AZ

Obsolete

CEL

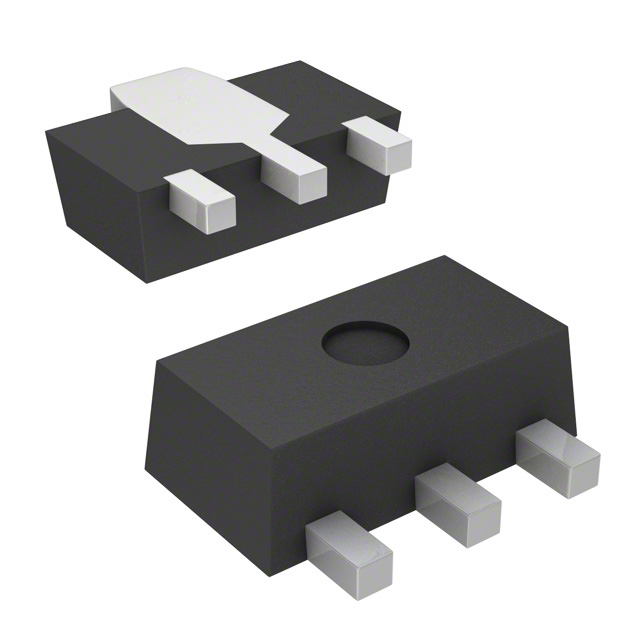

RF MOSFET 7.5V 3MINIMOLD

Search across all available documentation for this part.

Obsolete

CEL

RF MOSFET 7.5V 3MINIMOLD

Technical Specifications

Parameters and characteristics for this part

Part	Power - Output	Current Rating (Amps)	Voltage - Rated	Gain	Voltage - Test	Package / Case	Supplier Device Package	Current - Test	Frequency	Technology	Configuration
CEL NE5550979A-A	38.6 dBm	3 A	30 V	22 dBi	7.5 V	4-SMD Flat Leads	79A	200 mA	900 MHz
CEL NE5550234-T1-AZ	32.2 dBm	600 mA	30 V		7.5 V	TO-243AA	3-PowerMiniMold	40 mA	900 MHz	MOSFET (Metal Oxide)	N-Channel
CEL NE5550279A-A	33 dBm	600 mA	30 V	22.5 dB	7.5 V	4-SMD Flat Leads	79A	40 mA	900 MHz
CEL NE5550779A-A	38.5 dBm	2.1 A	30 V	22 dBi	7.5 V	4-SMD Flat Leads	79A	140 mA	900 MHz
CEL NE5550779A-T1-A	38.5 dBm	2.1 A	30 V	22 dBi	7.5 V	4-SMD Flat Leads	79A	140 mA	900 MHz
CEL NE5550279A-T1-A	33 dBm	600 mA	30 V	22.5 dB	7.5 V	4-SMD Flat Leads	79A	40 mA	900 MHz
CEL NE5550234-AZ	32.2 dBm	600 mA	30 V		7.5 V	TO-243AA	3-PowerMiniMold	40 mA	900 MHz	MOSFET (Metal Oxide)	N-Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 7.5 V 40 mA 900MHz 23.5dB 32.2dB 3-PowerMiniMold
