T38011-04-0

Active

Curtis Industries

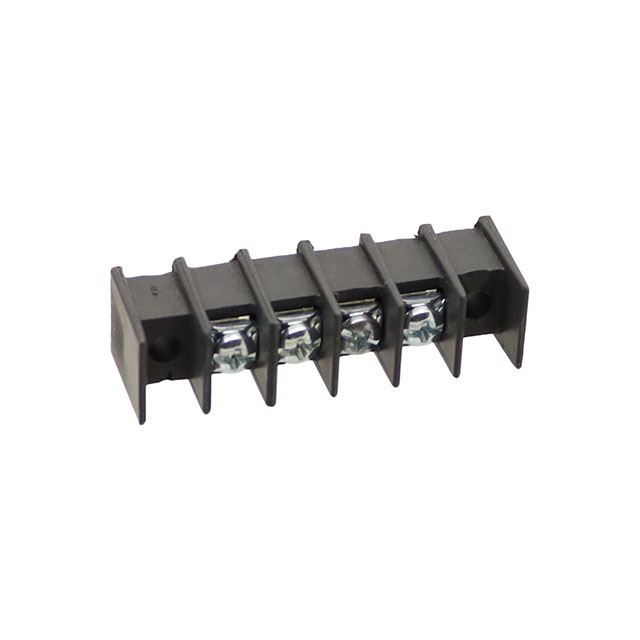

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T38011-04-0

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T38011-04-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T38011 Series

Part	Current Rating (Amps)	Features	Operating Temperature	Top Termination	Material - Insulation	Voltage Rating	Mounting Type	Number of Wire Entries	Bottom Termination	Terminal Block Type	Material Flammability Rating	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Number of Rows	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]
Curtis Industries T38011-19-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	19	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	19	1	9.53 mm	0.375 in
Curtis Industries T38011-06-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	6	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	6	1	9.53 mm	0.375 in
Curtis Industries T38011-05-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	5	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	5	1	9.53 mm	0.375 in
Curtis Industries T38011-01-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole		PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	1	1			1
Curtis Industries T38011-03-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	3	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	3	1	9.53 mm	0.375 in
Curtis Industries T38011-18-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	18	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	18	1	9.53 mm	0.375 in
Curtis Industries T38011-07-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	7	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	7	1	9.53 mm	0.375 in
Curtis Industries T38011-04-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	4	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	4	1	9.53 mm	0.375 in
Curtis Industries T38011-10-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	10	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	10	1	9.53 mm	0.375 in
Curtis Industries T38011-25-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	25	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	25	1	9.53 mm	0.375 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.52
		10	$ 2.68
		25	$ 2.51
		50	$ 2.23
		100	$ 2.19
		250	$ 2.14

Description

General part information

T38011 Series

4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available
