T38011-06-0
ActiveCurtis Industries

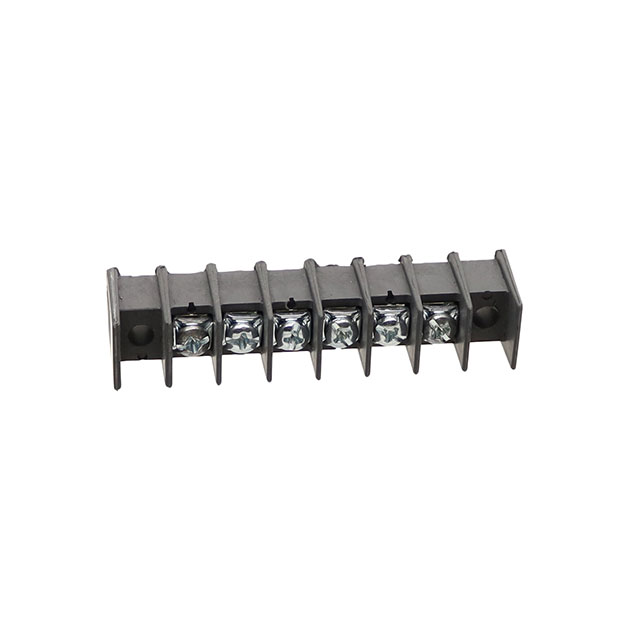

CONN BARRIER STRIP 6CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
T38011-06-0
ActiveCurtis Industries
CONN BARRIER STRIP 6CIRC 0.375"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T38011-06-0 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole |
| Number of Circuits | 6 |
| Number of Rows | 1 |
| Number of Wire Entries | 6 |
| Operating Temperature | 105 C |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
T38011 Series
| Part | Current Rating (Amps) | Features | Operating Temperature | Top Termination | Material - Insulation | Voltage Rating | Mounting Type | Number of Wire Entries | Bottom Termination | Terminal Block Type | Material Flammability Rating | Barrier Type | Wire Gauge [Min] | Wire Gauge [Max] | Number of Circuits | Number of Rows | Pitch [x] | Pitch [x] | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 19 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 19 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 6 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 6 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 5 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 5 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 1 | 1 | 1 | |||
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 3 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 3 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 18 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 18 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 7 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 7 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 4 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 4 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 10 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 10 | 1 | 9.53 mm | 0.375 in | |
Curtis Industries | 20 A | Flange | 105 C | Screws with Captive Plate | Polypropylene (PP) | 300 VDC | Chassis Panel Through Hole | 25 | PC Pin | Barrier Block | UL94 V-0 | 2 Wall (Dual) | 12 AWG | 22 AWG | 25 | 1 | 9.53 mm | 0.375 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.70 | |
| 10 | $ 5.28 | |||
| 25 | $ 5.02 | |||
| 50 | $ 4.56 | |||
| 100 | $ 4.38 | |||
| 250 | $ 3.86 | |||
| 500 | $ 3.61 | |||
| 1000 | $ 3.35 | |||
Description
General part information
T38011 Series
6 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate
Documents
Technical documentation and resources
No documents available
