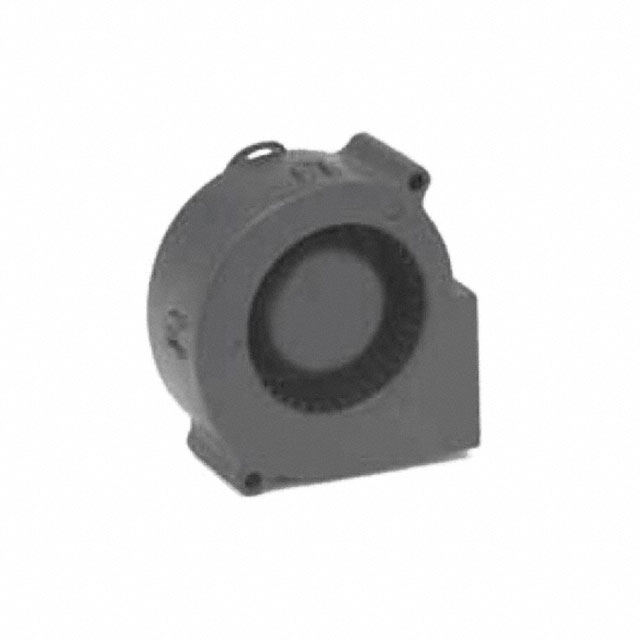

ODB7530-24HB

Active

Orion Fans

FAN BLOWER, 75MM, 4.8W, 24VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER, 75MM, 4.8W, 24VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	ODB7530-24HB

Air Flow	0.386 mł/min
Air Flow	13.8 CFM
Bearing Type	Ball
Current Rating (Amps)	0.2 A
Fan Type	Blower
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	41.7 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	4.8 W
RPM	3400 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	75 mm
Size / Dimension [z]	75 mm
Static Pressure	0.56 in H2O
Static Pressure	139.5 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	17 VDC
Width [y]	30 mm

Part	Air Flow	Air Flow	Features	Width [y]	Current Rating (Amps)	Termination	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Fan Type	Static Pressure	Static Pressure	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Material - Blade	Voltage - Rated	Noise	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type
Orion Fans ODB7530-12HB02A	0.386 mł/min	13.8 CFM	Locked Rotor Sensor	30 mm	360 mA	3 Wire Leads	13.2 VDC	7 V	4.32 W	Blower	0.56 in H2O	139.5 Pa	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Polybutylene Terephthalate (PBT)	12 VDC	41.7 dB(A)	75 mm	Square/Rounded	75 mm	Ball
Orion Fans ODB7530-12HB	0.386 mł/min	13.8 CFM		30 mm	360 mA	2 Wire Leads	13.2 VDC	7 V	4.32 W	Blower	0.56 in H2O	139.5 Pa		70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Polybutylene Terephthalate (PBT)	12 VDC	41.7 dB(A)	75 mm	Square/Rounded	75 mm	Ball
Orion Fans ODB7530-24HB	0.386 mł/min	13.8 CFM		30 mm	0.2 A	2 Wire Leads	26.4 VDC	17 VDC	4.8 W	Blower	0.56 in H2O	139.5 Pa		70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Polybutylene Terephthalate (PBT)	24 VDC	41.7 dB(A)	75 mm	Square/Rounded	75 mm	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Square/Rounded - 75mm L x 75mm H Ball 13.8 CFM (0.386m³/min) 2 Wire Leads
