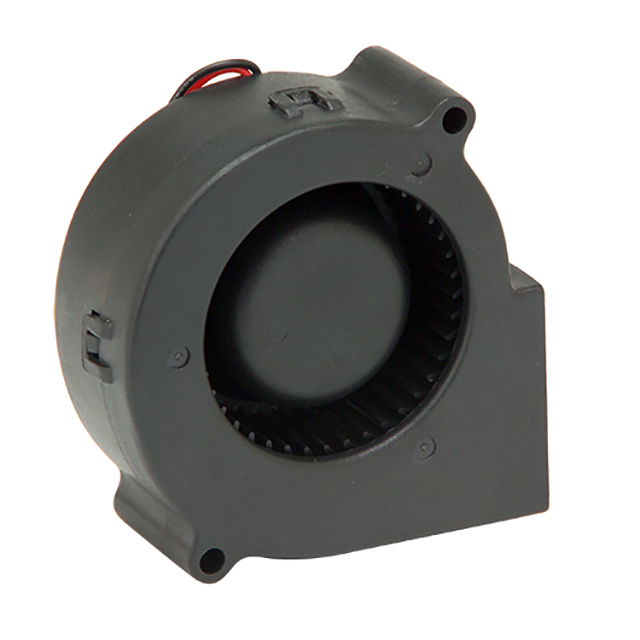

ODB7530-12HB02A

Active

Orion Fans

FAN BLOWER 75X30MM 12VDC WIRE

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER 75X30MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	ODB7530-12HB02A

Air Flow	0.386 mł/min
Air Flow	13.8 CFM
Bearing Type	Ball
Current Rating (Amps)	360 mA
Fan Type	Blower
Features	Locked Rotor Sensor
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	41.7 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	4.32 W
RPM	3400 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	75 mm
Size / Dimension [z]	75 mm
Static Pressure	0.56 in H2O
Static Pressure	139.5 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Width [y]	30 mm

Part	Air Flow	Air Flow	Features	Width [y]	Current Rating (Amps)	Termination	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Fan Type	Static Pressure	Static Pressure	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Material - Blade	Voltage - Rated	Noise	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type
Orion Fans ODB7530-12HB02A	0.386 mł/min	13.8 CFM	Locked Rotor Sensor	30 mm	360 mA	3 Wire Leads	13.2 VDC	7 V	4.32 W	Blower	0.56 in H2O	139.5 Pa	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Polybutylene Terephthalate (PBT)	12 VDC	41.7 dB(A)	75 mm	Square/Rounded	75 mm	Ball
Orion Fans ODB7530-12HB	0.386 mł/min	13.8 CFM		30 mm	360 mA	2 Wire Leads	13.2 VDC	7 V	4.32 W	Blower	0.56 in H2O	139.5 Pa		70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Polybutylene Terephthalate (PBT)	12 VDC	41.7 dB(A)	75 mm	Square/Rounded	75 mm	Ball
Orion Fans ODB7530-24HB	0.386 mł/min	13.8 CFM		30 mm	0.2 A	2 Wire Leads	26.4 VDC	17 VDC	4.8 W	Blower	0.56 in H2O	139.5 Pa		70 °C	70 °C	-10 °C	-10 °C	3400 RPM	Polybutylene Terephthalate (PBT)	24 VDC	41.7 dB(A)	75 mm	Square/Rounded	75 mm	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.77

General part information

Fan Blower 12VDC Square/Rounded - 75mm L x 75mm H Ball 13.8 CFM (0.386m³/min) 3 Wire Leads
