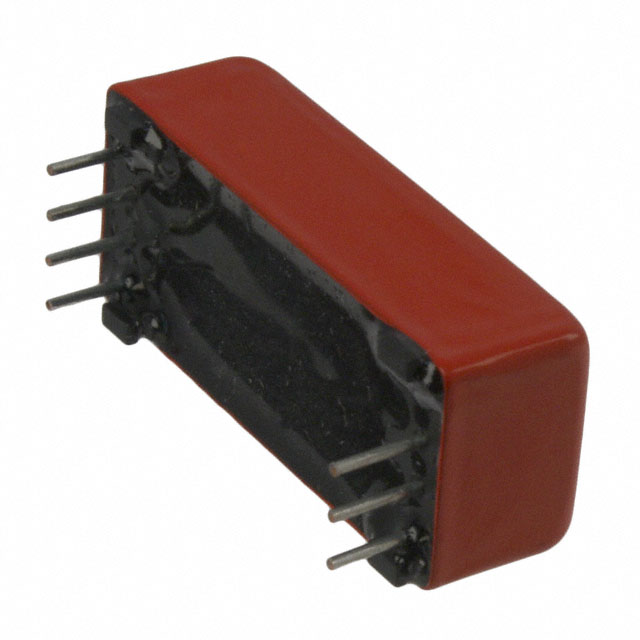

7102-05-1011
ActiveCoto Technology
RELAY REED DPST 500MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7102-05-1011
ActiveCoto Technology
RELAY REED DPST 500MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7102-05-1011 |
|---|---|
| Coil Current | 33.3 mA |
| Coil Resistance | 150 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 0.5 A |
| Features | Diode, Electrostatic Shield |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 1 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.1 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | PC Pin |
7102 Series
| Part | Mounting Type | Coil Type | Coil Voltage | Operate Time | Coil Resistance | Release Time | Coil Current | Must Release Voltage | Switching Voltage | Features | Must Operate Voltage | Contact Form | Termination Style | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Coto Technology | Through Hole | Non Latching | 5 VDC | 1 ms | 150 Ohms | 0.1 ms | 33.3 mA | 0.4 VDC | 200 VDC 200 VAC | Electrostatic Shield | 3.75 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C |
Coto Technology | Through Hole | Non Latching | 5 VDC | 1 ms | 150 Ohms | 0.1 ms | 33.3 mA | 0.4 VDC | 200 VDC 200 VAC | 3.75 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C | |
Coto Technology | Through Hole | Non Latching | 12 VDC | 1 ms | 1 kOhms | 0.1 ms | 12 mA | 1 VDC | 200 VDC 200 VAC | 9 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C | |
Coto Technology | Through Hole | Non Latching | 12 VDC | 1 ms | 1 kOhms | 0.1 ms | 12 mA | 1 VDC | 200 VDC 200 VAC | Electrostatic Shield | 9 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C |
Coto Technology | Through Hole | Non Latching | 5 VDC | 1 ms | 150 Ohms | 0.1 ms | 33.3 mA | 0.4 VDC | 200 VDC 200 VAC | Diode Electrostatic Shield | 3.75 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C |
Coto Technology | Through Hole | Non Latching | 24 VDC | 1 ms | 3.5 kOhms | 0.1 ms | 6.9 mA | 2 VDC | 200 VDC 200 VAC | 18 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C | |
Coto Technology | Through Hole | Non Latching | 12 VDC | 1 ms | 1 kOhms | 0.1 ms | 12 mA | 1 VDC | 200 VDC 200 VAC | Electrostatic Shield | 9 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C |
Coto Technology | Through Hole | Non Latching | 12 VDC | 1 ms | 1 kOhms | 0.1 ms | 12 mA | 1 VDC | 200 VDC 200 VAC | Diode Electrostatic Shield | 9 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C |
Coto Technology | Through Hole | Non Latching | 5 VDC | 1 ms | 150 Ohms | 0.1 ms | 33.3 mA | 0.4 VDC | 200 VDC 200 VAC | Diode | 3.75 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C |
Coto Technology | Through Hole | Non Latching | 12 VDC | 1 ms | 1 kOhms | 0.1 ms | 12 mA | 1 VDC | 200 VDC 200 VAC | Diode | 9 VDC | DPST-NO (2 Form A) | PC Pin | 0.5 A | 85 °C | -20 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.24 | |
| 10 | $ 13.55 | |||
| 25 | $ 12.87 | |||
| 50 | $ 12.19 | |||
| 100 | $ 11.93 | |||
Description
General part information
7102 Series
RELAY REED DPST 500MA 5V
Documents
Technical documentation and resources
