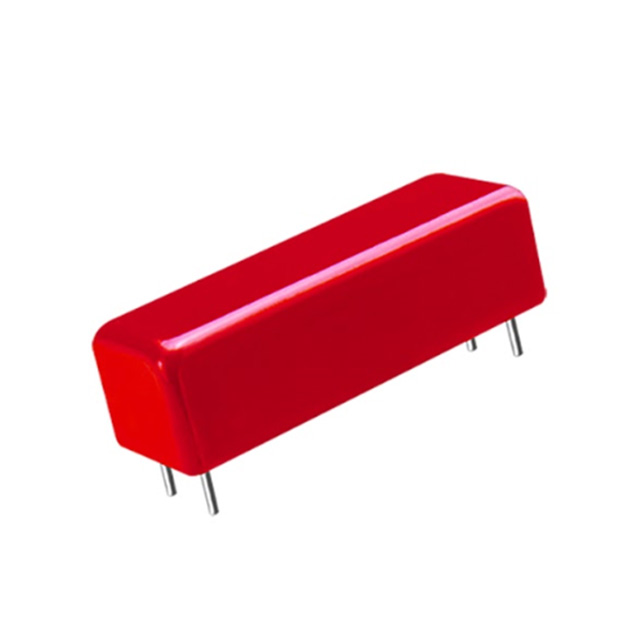

7102-05-1000

Active

Coto Technology

RELAY REED DPST 500MA 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7102-05-1000

Active

Coto Technology

RELAY REED DPST 500MA 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7102-05-1000

Coil Current	33.3 mA
Coil Resistance	150 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	DPST-NO (2 Form A)
Contact Rating (Current)	0.5 A
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.4 VDC
Operate Time	1 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Release Time	0.1 ms
Switching Voltage	200 VDC, 200 VAC
Termination Style	PC Pin

7102 Series

Part	Mounting Type	Coil Type	Coil Voltage	Operate Time	Coil Resistance	Release Time	Coil Current	Must Release Voltage	Switching Voltage	Features	Must Operate Voltage	Contact Form	Termination Style	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]
Coto Technology 7102-05-1010	Through Hole	Non Latching	5 VDC	1 ms	150 Ohms	0.1 ms	33.3 mA	0.4 VDC	200 VDC 200 VAC	Electrostatic Shield	3.75 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-05-1000	Through Hole	Non Latching	5 VDC	1 ms	150 Ohms	0.1 ms	33.3 mA	0.4 VDC	200 VDC 200 VAC		3.75 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-12-1000	Through Hole	Non Latching	12 VDC	1 ms	1 kOhms	0.1 ms	12 mA	1 VDC	200 VDC 200 VAC		9 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-12-1010	Through Hole	Non Latching	12 VDC	1 ms	1 kOhms	0.1 ms	12 mA	1 VDC	200 VDC 200 VAC	Electrostatic Shield	9 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-05-1011	Through Hole	Non Latching	5 VDC	1 ms	150 Ohms	0.1 ms	33.3 mA	0.4 VDC	200 VDC 200 VAC	Diode Electrostatic Shield	3.75 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-24-1000	Through Hole	Non Latching	24 VDC	1 ms	3.5 kOhms	0.1 ms	6.9 mA	2 VDC	200 VDC 200 VAC		18 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-12-1110	Through Hole	Non Latching	12 VDC	1 ms	1 kOhms	0.1 ms	12 mA	1 VDC	200 VDC 200 VAC	Electrostatic Shield	9 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-12-1011	Through Hole	Non Latching	12 VDC	1 ms	1 kOhms	0.1 ms	12 mA	1 VDC	200 VDC 200 VAC	Diode Electrostatic Shield	9 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-05-1001	Through Hole	Non Latching	5 VDC	1 ms	150 Ohms	0.1 ms	33.3 mA	0.4 VDC	200 VDC 200 VAC	Diode	3.75 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C
Coto Technology 7102-12-1001	Through Hole	Non Latching	12 VDC	1 ms	1 kOhms	0.1 ms	12 mA	1 VDC	200 VDC 200 VAC	Diode	9 VDC	DPST-NO (2 Form A)	PC Pin	0.5 A	85 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.65
		10	$ 10.35
		25	$ 9.83
		50	$ 9.32
		100	$ 9.11

Description

General part information

7102 Series

RELAY REED DPST 500MA 5V
