C90-3101F10SL-3P

Active

Harwin Inc.

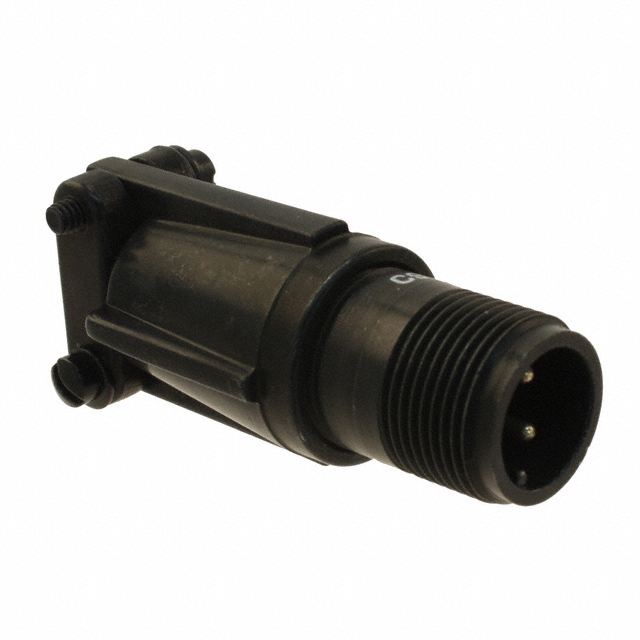

CIRCULAR CONNECTOR, CABLE MOUNT RECEPTACLE, 3 CONTACTS, SOLDER PIN, ALUMINUM ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90 Circular Catalog Datasheet +3

C90-3101F10SL-3P

Active

Harwin Inc.

CIRCULAR CONNECTOR, CABLE MOUNT RECEPTACLE, 3 CONTACTS, SOLDER PIN, ALUMINUM ALLOY BODY

Deep-Dive with AI

DocumentsC90 Circular Catalog Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C90-3101F10SL-3P

Applications	Industrial, Automotive
Backshell Material, Plating	Black Zinc Cobalt, Aluminum Alloy
Cable Opening [diameter]	7.14 mm
Cable Opening [diameter]	0.281 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert	10SL-3
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

C90-3101F Series

Part	Shell Material	Color	Voltage Rating	Ingress Protection	Connector Type	Mounting Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Shielding	Shell Finish	Number of Positions	Current Rating (Amps)	Orientation	Features	Contact Material	Primary Material	Applications	Contact Finish - Mating	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]
Harwin Inc. C90-3101F14S-6S	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-6	Unshielded	Black Zinc Cobalt Alloy	6	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F10SL-4S	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-4	Unshielded	Black Zinc Cobalt Alloy	2	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in
Harwin Inc. C90-3101F14S-2P	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-2	Unshielded	Black Zinc Cobalt Alloy	4	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F10SL-4P	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-4	Unshielded	Black Zinc Cobalt Alloy	2	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in
Harwin Inc. C90-3101F14S-6P	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-6	Unshielded	Black Zinc Cobalt Alloy	6	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F14S-2S	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-2	Unshielded	Black Zinc Cobalt Alloy	4	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F10SL-3P	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-3	Unshielded	Black Zinc Cobalt Alloy	3	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in
Harwin Inc. C90-3101F10SL-3S	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-3	Unshielded	Black Zinc Cobalt Alloy	3	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in
