C90-3101F14S-2S

Active

Harwin Inc.

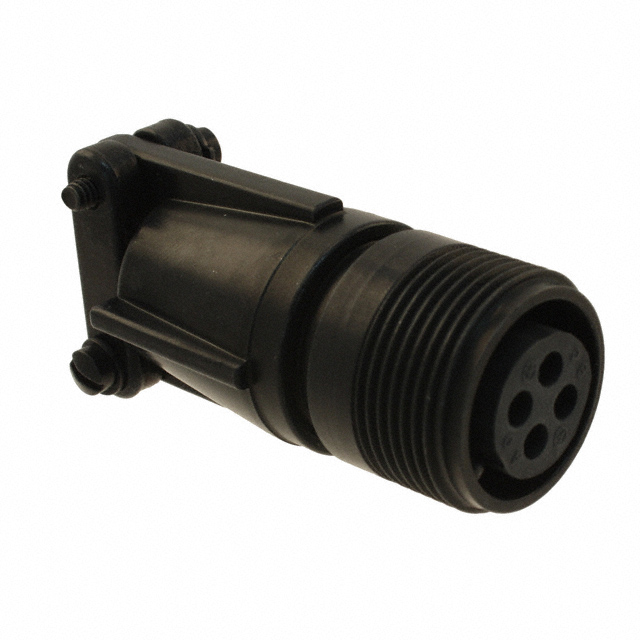

CIRCULAR CONNECTOR, MIL-C-5015 SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC90 Circular Catalog Datasheet +3

C90-3101F14S-2S

Active

Harwin Inc.

CIRCULAR CONNECTOR, MIL-C-5015 SERIES, CABLE MOUNT RECEPTACLE, 4 CONTACTS, SOLDER SOCKET

Deep-Dive with AI

DocumentsC90 Circular Catalog Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C90-3101F14S-2S

Applications	Industrial, Automotive
Backshell Material, Plating	Black Zinc Cobalt, Aluminum Alloy
Cable Opening [custom]	10.3 mm
Cable Opening [custom]	0.406 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Rubber
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Zinc Cobalt Alloy
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-2
Shielding	Unshielded
Voltage Rating	250 VDC, 200 VAC

C90-3101F Series

Part	Shell Material	Color	Voltage Rating	Ingress Protection	Connector Type	Mounting Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Shielding	Shell Finish	Number of Positions	Current Rating (Amps)	Orientation	Features	Contact Material	Primary Material	Applications	Contact Finish - Mating	Backshell Material, Plating	Cable Opening [diameter]	Cable Opening [diameter]
Harwin Inc. C90-3101F14S-6S	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-6	Unshielded	Black Zinc Cobalt Alloy	6	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F10SL-4S	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-4	Unshielded	Black Zinc Cobalt Alloy	2	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in
Harwin Inc. C90-3101F14S-2P	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-2	Unshielded	Black Zinc Cobalt Alloy	4	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F10SL-4P	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-4	Unshielded	Black Zinc Cobalt Alloy	2	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in
Harwin Inc. C90-3101F14S-6P	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-6	Unshielded	Black Zinc Cobalt Alloy	6	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F14S-2S	Aluminum Alloy	Black	200 VAC 250 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C	10.3 mm	0.406 in	14S-2	Unshielded	Black Zinc Cobalt Alloy	4	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt
Harwin Inc. C90-3101F10SL-3P	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-3	Unshielded	Black Zinc Cobalt Alloy	3	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in
Harwin Inc. C90-3101F10SL-3S	Aluminum Alloy	Black	500 VAC 700 VDC	IP67 - Dust Tight Waterproof	Receptacle Female Sockets	Free Hanging (In-Line)	Synthetic Rubber	-55 °C	125 °C			10SL-3	Unshielded	Black Zinc Cobalt Alloy	3	13 A	Keyed	Backshell Cable Clamp	Copper Alloy	Metal	Automotive Industrial	Silver	Aluminum Alloy Black Zinc Cobalt	7.14 mm	0.281 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 21.10
		10	$ 18.28
		25	$ 17.33
		50	$ 17.08
		100	$ 15.07
		250	$ 14.06
		500	$ 13.76
Newark	Each	100	$ 17.31
		250	$ 15.82
		500	$ 14.72
		1000	$ 13.53
		2500	$ 13.23

Description

General part information

C90-3101F Series

4 (Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
