FB15ANEP2-HC

Active

NKK Switches

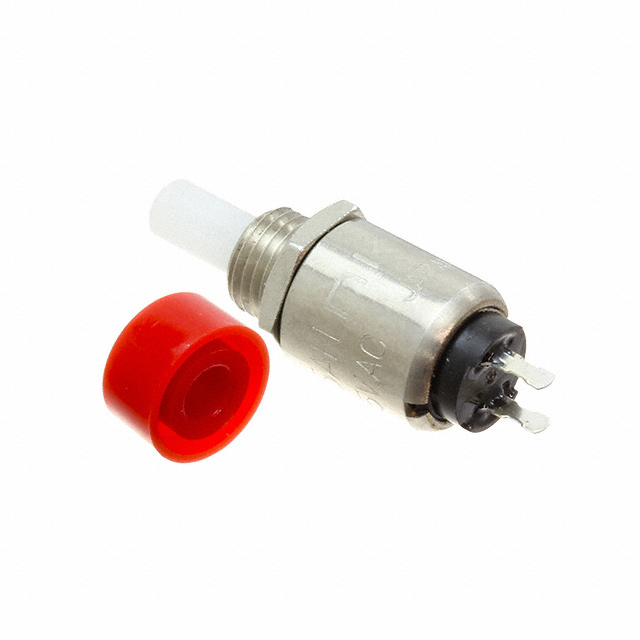

PUSHBUTTON SWITCH, FB SERIES, 5.3 MM, SPST-NO, OFF-(ON), ROUND, RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

FB15ANEP2-HC

Active

NKK Switches

PUSHBUTTON SWITCH, FB SERIES, 5.3 MM, SPST-NO, OFF-(ON), ROUND, RED

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FB15ANEP2-HC

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	500 mA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	5.3 mm
Switch Function	Off-Mom
Termination Style	Solder Turret
Type	Standard
Voltage Rating - AC	125 V

FB15AN Series

Part	Type	Electrical Life	Panel Cutout Dimensions [diameter]	Mounting Type	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Features	Actuator Type	Switch Function	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Termination Style	Current Rating (Amps)	Circuit	Voltage Rating - DC
NKK Switches FB15ANEP2/U	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	White	No Marking	125 V	Epoxy Sealed Terminals	Plunger for Cap	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP2-HB	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	White	No Marking	125 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP4-FC	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Red	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V
NKK Switches FB15ANEP4-HA	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Black	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V
NKK Switches FB15ANEP4-FB	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	White	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V
NKK Switches FB15ANEP2-FC	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Red	No Marking	125 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP2-HC	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Red	No Marking	125 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP4-FA	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Black	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.92
		10	$ 4.39
		25	$ 4.16
		50	$ 4.01
		100	$ 3.82
		250	$ 3.65
		500	$ 3.33
		1000	$ 3.18
Newark	Each	1	$ 10.09
		10	$ 9.69
		25	$ 9.39
		50	$ 8.70
		100	$ 7.93
		250	$ 6.96
		500	$ 6.23
		1000	$ 5.86

Description

General part information

FB15AN Series

Pushbutton Switch SPST-NO Standard Panel Mount, Rear

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
