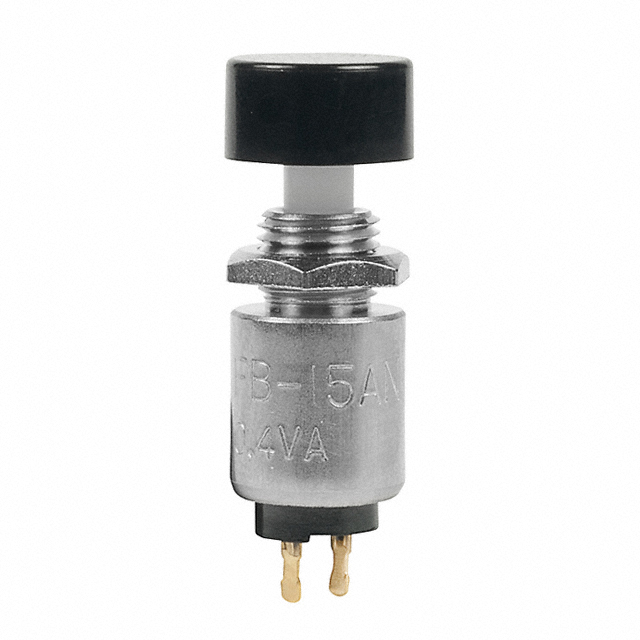

FB15ANEP4-HA

Active

NKK Switches

PUSHBUTTON SWITCH, SEALED, FB SERIES, 5.3 MM, SPST-NO, OFF-(ON), ROUND, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

FB15ANEP4-HA

Active

NKK Switches

PUSHBUTTON SWITCH, SEALED, FB SERIES, 5.3 MM, SPST-NO, OFF-(ON), ROUND, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FB15ANEP4-HA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	5.3 mm
Switch Function	Off-Mom
Termination Style	Solder Turret
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

FB15AN Series

Part	Type	Electrical Life	Panel Cutout Dimensions [diameter]	Mounting Type	Color - Actuator/Cap	Actuator Marking	Voltage Rating - AC	Features	Actuator Type	Switch Function	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Termination Style	Current Rating (Amps)	Circuit	Voltage Rating - DC
NKK Switches FB15ANEP2/U	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	White	No Marking	125 V	Epoxy Sealed Terminals	Plunger for Cap	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP2-HB	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	White	No Marking	125 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP4-FC	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Red	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V
NKK Switches FB15ANEP4-HA	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Black	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V
NKK Switches FB15ANEP4-FB	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	White	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V
NKK Switches FB15ANEP2-FC	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Red	No Marking	125 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP2-HC	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Red	No Marking	125 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	500 mA	SPST-NO
NKK Switches FB15ANEP4-FA	Standard	50000 Cycles	5.3 mm	Panel Mount Rear	Black	No Marking	28 V	Epoxy Sealed Terminals	Button Round	Off-Mom	-10 °C	158 °F	Solder Turret	0.4 VA	SPST-NO	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.65
		10	$ 5.09
		25	$ 4.84
		50	$ 4.63
		100	$ 4.48
		250	$ 4.25
		500	$ 3.92
		1000	$ 3.74
Newark	Each	1	$ 10.63
		5	$ 9.91
		10	$ 9.12
		25	$ 8.32
		50	$ 7.53
		100	$ 6.65
		250	$ 5.97

Description

General part information

FB15AN Series

Pushbutton Switch SPST-NO Standard Panel Mount, Rear
