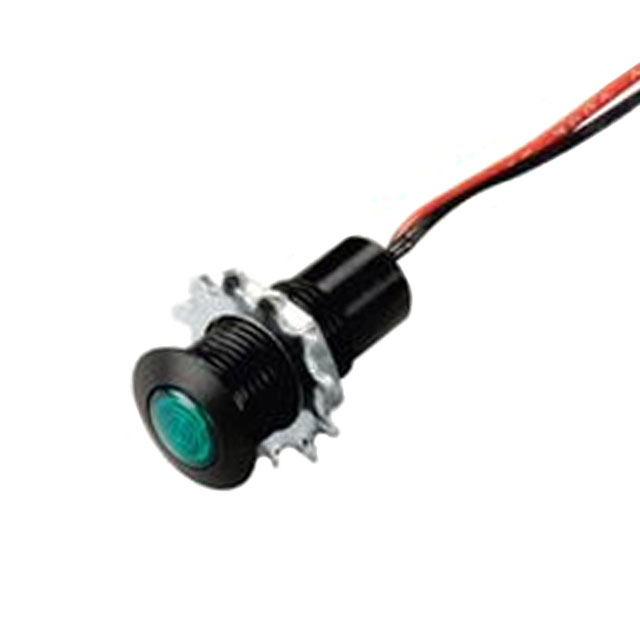

CNX_482_2_GTP_12
ActiveVisual Communications Company - VCC
PMT INDCTR MS CLR ANDZD ALUM GRN
Deep-Dive with AI
Search across all available documentation for this part.
CNX_482_2_GTP_12
ActiveVisual Communications Company - VCC
PMT INDCTR MS CLR ANDZD ALUM GRN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CNX_482_2_GTP_12 |
|---|---|
| Ingress Protection | NEMA 4 |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 12.7 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Fresnel |
| Millicandela Rating | 415 mcd |
| Panel Cutout Dimensions | 0.4 in |
| Panel Cutout Dimensions | 10.16 mm |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 12" (304.80mm) |
| Type | LED |
| Voltage | 1.9 V |
CNX_482 Series
| Part | Lens Style | Lamp Color | Panel Cutout Dimensions | Panel Cutout Dimensions | Lens Color | Ingress Protection | Termination Style | Panel Cutout Shape | Millicandela Rating | Lens Size [diameter] | Type | Lens Transparency | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Visual Communications Company - VCC | Round with Domed Top | Red | 0.4 in | 10.16 mm | Red | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 295 mcd | 12.7 mm | LED | Fresnel | 1.8 V |
Visual Communications Company - VCC | Round with Domed Top | 0.4 in | 10.16 mm | Colorless | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 12.7 mm | LED | Fresnel | |||
Visual Communications Company - VCC | Round with Domed Top | Blue | 0.4 in | 10.16 mm | Blue | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 1125 mcd | 12.7 mm | LED | Fresnel | 3 V |
Visual Communications Company - VCC | Round with Domed Top | Red | 0.4 in | 10.16 mm | Red | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 295 mcd | 12.7 mm | LED | Fresnel | 1.8 V |
Visual Communications Company - VCC | Round with Domed Top | 0.4 in | 10.16 mm | Colorless | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 12.7 mm | LED | Fresnel | |||
Visual Communications Company - VCC | Round with Domed Top | Green | 0.4 in | 10.16 mm | Green | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 415 mcd | 12.7 mm | LED | Fresnel | 1.9 V |
Visual Communications Company - VCC | Round with Domed Top | Green | 0.4 in | 10.16 mm | Green | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 415 mcd | 12.7 mm | LED | Fresnel | 1.9 V |
Visual Communications Company - VCC | Round with Domed Top | Yellow | 0.4 in | 10.16 mm | Yellow | NEMA 4 | Wire Leads - 12" (304.80mm) | Round | 330 mcd | 12.7 mm | LED | Fresnel | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 500 | $ 11.71 | |
Description
General part information
CNX_482 Series
LED Panel Indicator Green Fresnel 1.9V 20mA Wire Leads - 12" (304.80mm)
Documents
Technical documentation and resources
No documents available
