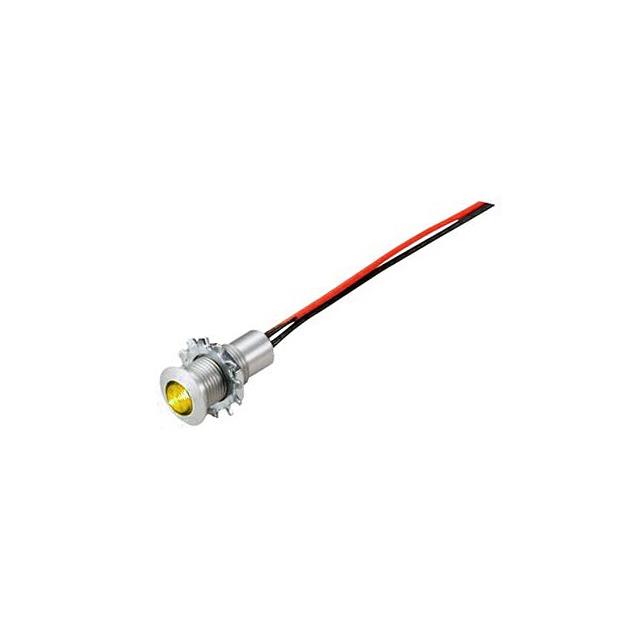

CNX_482_2_YTP_12

Active

Visual Communications Company - VCC

PMT INDCTR MS CLR ANDZD ALUM YLW

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMT INDCTR MS CLR ANDZD ALUM YLW

Technical Specifications

Parameters and characteristics for this part

Part	Lens Style	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Color	Ingress Protection	Termination Style	Panel Cutout Shape	Millicandela Rating	Lens Size [diameter]	Type	Lens Transparency	Voltage
Visual Communications Company - VCC CNX_482_2_RTP_12	Round with Domed Top	Red	0.4 in	10.16 mm	Red	NEMA 4	Wire Leads - 12" (304.80mm)	Round	295 mcd	12.7 mm	LED	Fresnel	1.8 V
Visual Communications Company - VCC CNX_482_2_CTP_12	Round with Domed Top		0.4 in	10.16 mm	Colorless	NEMA 4	Wire Leads - 12" (304.80mm)	Round		12.7 mm	LED	Fresnel
Visual Communications Company - VCC CNX_482_1_BTP_12	Round with Domed Top	Blue	0.4 in	10.16 mm	Blue	NEMA 4	Wire Leads - 12" (304.80mm)	Round	1125 mcd	12.7 mm	LED	Fresnel	3 V
Visual Communications Company - VCC CNX_482_1_RTP_12	Round with Domed Top	Red	0.4 in	10.16 mm	Red	NEMA 4	Wire Leads - 12" (304.80mm)	Round	295 mcd	12.7 mm	LED	Fresnel	1.8 V
Visual Communications Company - VCC CNX_482_1_CTP_12	Round with Domed Top		0.4 in	10.16 mm	Colorless	NEMA 4	Wire Leads - 12" (304.80mm)	Round		12.7 mm	LED	Fresnel
Visual Communications Company - VCC CNX_482_2_GTP_12	Round with Domed Top	Green	0.4 in	10.16 mm	Green	NEMA 4	Wire Leads - 12" (304.80mm)	Round	415 mcd	12.7 mm	LED	Fresnel	1.9 V
Visual Communications Company - VCC CNX_482_1_GTP_12	Round with Domed Top	Green	0.4 in	10.16 mm	Green	NEMA 4	Wire Leads - 12" (304.80mm)	Round	415 mcd	12.7 mm	LED	Fresnel	1.9 V
Visual Communications Company - VCC CNX_482_2_YTP_12	Round with Domed Top	Yellow	0.4 in	10.16 mm	Yellow	NEMA 4	Wire Leads - 12" (304.80mm)	Round	330 mcd	12.7 mm	LED	Fresnel	1.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	500	$ 11.71

General part information

LED Panel Indicator Yellow Fresnel 1.9V 20mA Wire Leads - 12" (304.80mm)

Technical documentation and resources

No documents available
