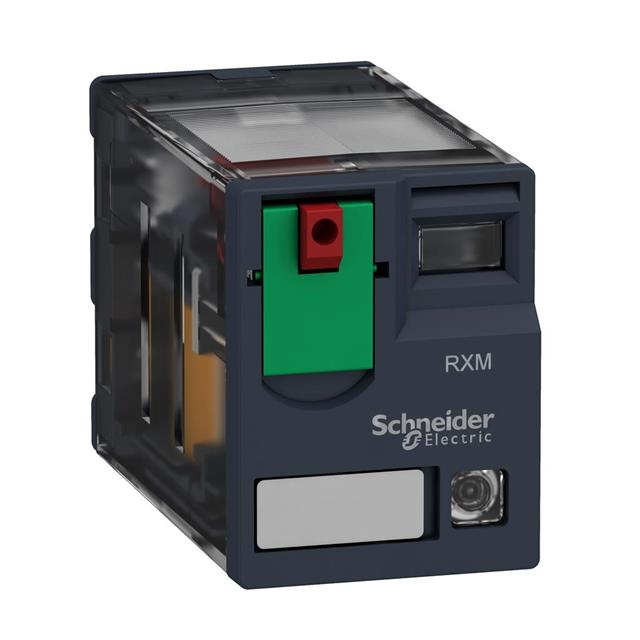

RXM2AB2E7

Active

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, DPDT, 48 VAC, 12 A, ZELIO RXM SERIES, QUICK CONNECT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

RXM2AB2E7

Active

SQUARE D BY SCHNEIDER ELECTRIC

POWER RELAY, DPDT, 48 VAC, 12 A, ZELIO RXM SERIES, QUICK CONNECT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RXM2AB2E7

Approval Agency	CE, IECEE, Lloyd's, GOST, UL, CSA
Coil Current	67.6 mA
Coil Resistance	710 Ohms
Coil Type	Non Latching
Coil Voltage	48 VAC/DC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Features	Test Button, Lighted Indicator
Load - Max Switching	336 W, 3000 VA
Mounting Type	Socketable
Must Operate Voltage	38.4 VAC
Must Release Voltage	7.2 VAC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

RXM2A Series

Part	Coil Type	Must Release Voltage	Contact Rating (Current)	Release Time	Relay Type	Coil Voltage	Mounting Type	Coil Current	Contact Form	Switching Voltage	Features	Operate Time	Load - Max Switching	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Termination Style	Contact Material	Coil Resistance
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB1E7	Non Latching	7.2 VAC	12 A	20 ms	General Purpose	48 VAC/DC	Socketable	67.6 mA	DPDT (2 Form C)	28 VDC 250 VAC	Test Button	20 ms	336 W 3000 VA	38.4 VAC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Plug In	Silver Nickel (AgNi)	710 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB2B7PVS	Non Latching	7.2 VAC	12 A	20 ms	General Purpose	24 VAC	DIN Rail	133.3 mA	DPDT (2 Form C)	28 VDC 250 VAC	Lighted Indicator Test Button	20 ms	336 W 3000 VA	19.2 VAC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Screw Terminal	Silver Nickel (AgNi)	180 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB1ED	Non Latching	4.8 VDC	12 A	20 ms	General Purpose	48 VDC	Socketable	18.8 mA	DPDT (2 Form C)	28 VDC 250 VAC	Test Button	20 ms	336 W 3000 VA	38.4 VDC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Plug In	Silver Nickel (AgNi)	2560 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB1FD	Non Latching	11 VDC	12 A	20 ms	General Purpose	110 VDC	Socketable	8.2 mA	DPDT (2 Form C)	28 VDC 250 VAC	Test Button	20 ms	336 W 3000 VA	88 VDC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Plug In	Silver Nickel (AgNi)	13.44 kOhms
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB3BD	Non Latching	2.4 VDC	10 A	20 ms	General Purpose	24 VDC	Socketable	36.9 mA	DPDT (2 Form C)	28 VDC 250 VAC	Lighted Indicator	20 ms	280 W 2500 VA	19.2 VDC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Plug In	Silver Nickel (AgNi)	650 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB2E7	Non Latching	7.2 VAC	12 A	20 ms	General Purpose	48 VAC/DC	Socketable	67.6 mA	DPDT (2 Form C)	28 VDC 250 VAC	Lighted Indicator Test Button	20 ms	336 W 3000 VA	38.4 VAC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Plug In	Silver Nickel (AgNi)	710 Ohms
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB2P7PVS	Non Latching	69 VAC	12 A	20 ms	General Purpose	230 VAC	DIN Rail	15.3 mA	DPDT (2 Form C)	28 VDC 250 VAC	Lighted Indicator Test Button	20 ms	336 W 3000 VA	184 VAC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Screw Terminal	Silver Nickel (AgNi)	15 kOhms
SQUARE D BY SCHNEIDER ELECTRIC RXM2AB2B7PVM	Non Latching	7.2 VAC	10 A	20 ms	General Purpose	24 VAC	DIN Rail	133.3 mA	DPDT (2 Form C)	28 VDC 250 VAC		20 ms	280 W 2500 VA	19.2 VAC	-40 °C	55 °C	CE CSA GOST IECEE Lloyd's UL	Screw Terminal	Silver Nickel (AgNi)	180 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.01
		10	$ 10.68
		25	$ 10.14
		50	$ 9.61
		100	$ 9.07
		250	$ 8.27
		500	$ 7.74
		1000	$ 7.56
Newark	Each	1	$ 9.42
		100	$ 7.70
		250	$ 7.06
		500	$ 6.56
		1000	$ 6.16

Description

General part information

RXM2A Series

General Purpose Relay DPDT (2 Form C) 48VAC Coil Socketable
