RXM2AB2P7PVS
ActivePOWER RELAY, DPDT, 230 VAC, 12 A, HARMONY RXM SERIES, SOCKET, NON LATCHING
Deep-Dive with AI
Search across all available documentation for this part.
RXM2AB2P7PVS
ActivePOWER RELAY, DPDT, 230 VAC, 12 A, HARMONY RXM SERIES, SOCKET, NON LATCHING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RXM2AB2P7PVS |
|---|---|
| Approval Agency | CE, IECEE, Lloyd's, GOST, UL, CSA |
| Coil Current | 15.3 mA |
| Coil Resistance | 15 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 230 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 12 A |
| Features | Test Button, Lighted Indicator |
| Load - Max Switching | 336 W, 3000 VA |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 184 VAC |
| Must Release Voltage | 69 VAC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Screw Terminal |
RXM2A Series
| Part | Coil Type | Must Release Voltage | Contact Rating (Current) | Release Time | Relay Type | Coil Voltage | Mounting Type | Coil Current | Contact Form | Switching Voltage | Features | Operate Time | Load - Max Switching | Must Operate Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Termination Style | Contact Material | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 7.2 VAC | 12 A | 20 ms | General Purpose | 48 VAC/DC | Socketable | 67.6 mA | DPDT (2 Form C) | 28 VDC 250 VAC | Test Button | 20 ms | 336 W 3000 VA | 38.4 VAC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Plug In | Silver Nickel (AgNi) | 710 Ohms |
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 7.2 VAC | 12 A | 20 ms | General Purpose | 24 VAC | DIN Rail | 133.3 mA | DPDT (2 Form C) | 28 VDC 250 VAC | Lighted Indicator Test Button | 20 ms | 336 W 3000 VA | 19.2 VAC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Screw Terminal | Silver Nickel (AgNi) | 180 Ohms |
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 4.8 VDC | 12 A | 20 ms | General Purpose | 48 VDC | Socketable | 18.8 mA | DPDT (2 Form C) | 28 VDC 250 VAC | Test Button | 20 ms | 336 W 3000 VA | 38.4 VDC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Plug In | Silver Nickel (AgNi) | 2560 Ohms |
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 11 VDC | 12 A | 20 ms | General Purpose | 110 VDC | Socketable | 8.2 mA | DPDT (2 Form C) | 28 VDC 250 VAC | Test Button | 20 ms | 336 W 3000 VA | 88 VDC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Plug In | Silver Nickel (AgNi) | 13.44 kOhms |
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 2.4 VDC | 10 A | 20 ms | General Purpose | 24 VDC | Socketable | 36.9 mA | DPDT (2 Form C) | 28 VDC 250 VAC | Lighted Indicator | 20 ms | 280 W 2500 VA | 19.2 VDC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Plug In | Silver Nickel (AgNi) | 650 Ohms |
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 7.2 VAC | 12 A | 20 ms | General Purpose | 48 VAC/DC | Socketable | 67.6 mA | DPDT (2 Form C) | 28 VDC 250 VAC | Lighted Indicator Test Button | 20 ms | 336 W 3000 VA | 38.4 VAC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Plug In | Silver Nickel (AgNi) | 710 Ohms |
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 69 VAC | 12 A | 20 ms | General Purpose | 230 VAC | DIN Rail | 15.3 mA | DPDT (2 Form C) | 28 VDC 250 VAC | Lighted Indicator Test Button | 20 ms | 336 W 3000 VA | 184 VAC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Screw Terminal | Silver Nickel (AgNi) | 15 kOhms |
SQUARE D BY SCHNEIDER ELECTRIC | Non Latching | 7.2 VAC | 10 A | 20 ms | General Purpose | 24 VAC | DIN Rail | 133.3 mA | DPDT (2 Form C) | 28 VDC 250 VAC | 20 ms | 280 W 2500 VA | 19.2 VAC | -40 °C | 55 °C | CE CSA GOST IECEE Lloyd's UL | Screw Terminal | Silver Nickel (AgNi) | 180 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.29 | |
| 10 | $ 32.58 | |||
| 25 | $ 30.86 | |||
| 50 | $ 29.15 | |||
| 100 | $ 27.43 | |||
| 250 | $ 25.72 | |||
Description
General part information
RXM2A Series

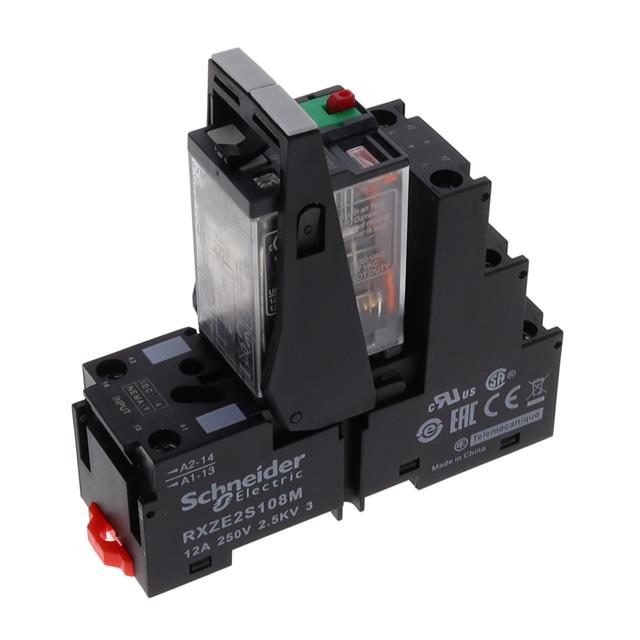

RXM miniature plug-in relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 12A, 230VAC, 2 CO miniature mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. It also offers one-step lockable test button and LED indicator. The miniature relay socket connection is by screw connector type. This pre-assembled relay weighs 0.101Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A) or 4 CO (6A) contacts.
