M80-263F302-00-00

Active

Harwin Inc.

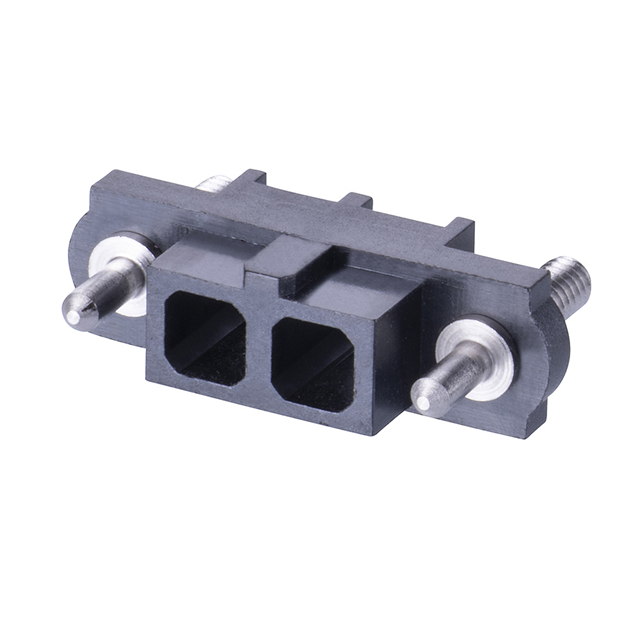

CONNECTOR HOUSING, DATAMATE MIX-TEK M80 SERIES, RECEPTACLE, 2 POSITIONS, 4 MM

Search across all available documentation for this part.

Active

Harwin Inc.

CONNECTOR HOUSING, DATAMATE MIX-TEK M80 SERIES, RECEPTACLE, 2 POSITIONS, 4 MM

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Note	Number of Positions	Contact Type	Connector Type	Number of Rows	Features	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Termination	Mounting Type
Harwin Inc. M80-263F303-00-00	4 mm	0.157 in	Contacts Not Included	3	Female Socket	Receptacle	1	Jackscrews Polarizing Key	Black	-55 °C	125 °C	Polyphenylene Sulfide (PPS)	Crimp and Solder
Harwin Inc. M80-263F104-00-00	4 mm	0.157 in	Contacts Not Included	4	Female Socket	Receptacle		Jackscrews Polarizing Key	Black	-55 °C	125 °C	Polyphenylene Sulfide (PPS)	Crimp and Solder	Free Hanging (In-Line)
Harwin Inc. M80-263F302-00-00	4 mm	0.157 in	Contacts Not Included	2	Female Socket	Receptacle	1	Jackscrews Polarizing Key	Black	-55 °C	125 °C	Polyphenylene Sulfide (PPS)	Crimp and Solder
Harwin Inc. M80-263F203-00-00	4 mm	0.157 in	Contacts Not Included	3	Female Socket	Receptacle	1	Jackscrews Polarizing Key	Black	-55 °C	125 °C	Polyphenylene Sulfide (PPS)	Crimp and Solder	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Coax or Power) Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)
