12226-8200-00PL

Active

3M (TC)

JE150323317 12226-8200-00PL=26/SDR/BDMT/RA/NL/8AU

Search across all available documentation for this part.

Active

3M (TC)

JE150323317 12226-8200-00PL=26/SDR/BDMT/RA/NL/8AU

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Features	Termination	Connector Type	Number of Positions	Contact Finish	Number of Rows	Flange Feature	Connector Style	Contact Finish Thickness	Contact Finish Thickness
3M (TC) 12226-5150-00FR	Panel Mount Right Angle Through Hole	Board Lock Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.76 Ám	30 Áin
3M (TC) 12226-1150-00PL	Panel Mount Through Hole	Board Lock Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.203 çm	8 çin
3M (TC) 12226-8200-00PL	Surface Mount Right Angle		Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.203 çm	8 çin
3M (TC) 12226-8250-00PL	Surface Mount Right Angle	Board Guide Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.203 çm	8 çin
3M (TC) 12226-1150-00FR	Panel Mount Through Hole	Board Lock Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.76 Ám	30 Áin
3M (TC) 12226-8250-00FR	Surface Mount Right Angle	Board Guide Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.76 Ám	30 Áin
3M (TC) 12226-1110-00FR	Through Hole	Shielded	Solder	Receptacle	26	Gold	2		Outer Shroud Contacts	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

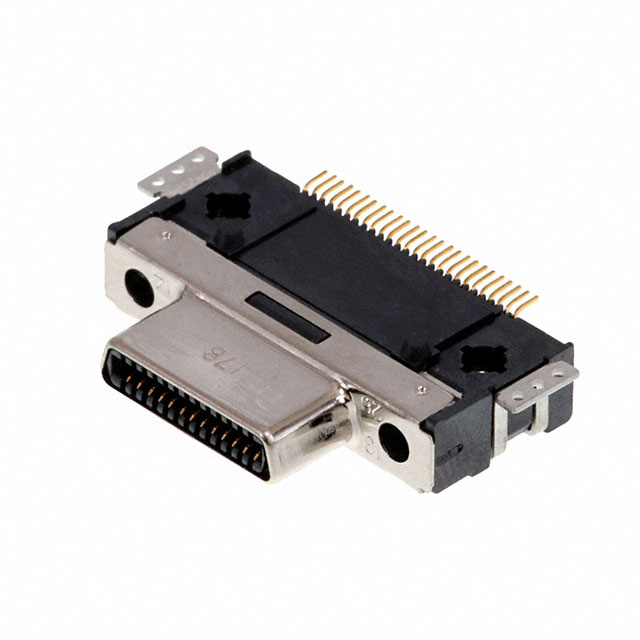

26 Position Receptacle Connector Surface Mount, Right Angle Solder
