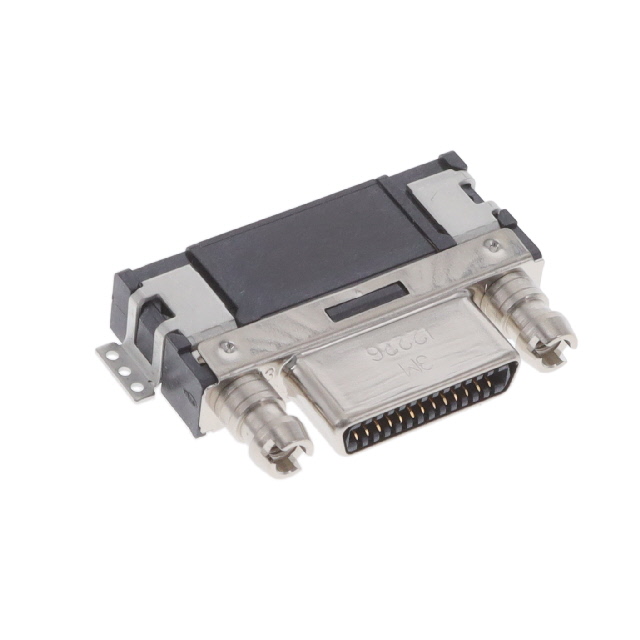

12226-8250-00FR

Active

3M (TC)

I/O CONNECTOR, 26 CONTACTS, RECEPTACLE, SDR, SURFACE MOUNT, 122 SERIES, PCB MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN

12226-8250-00FR

Active

3M (TC)

I/O CONNECTOR, 26 CONTACTS, RECEPTACLE, SDR, SURFACE MOUNT, 122 SERIES, PCB MOUNT

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	12226-8250-00FR

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Board Guide
Flange Feature	M2
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Number of Rows	2
Termination	Solder

12226 Series

Part	Mounting Type	Features	Termination	Connector Type	Number of Positions	Contact Finish	Number of Rows	Flange Feature	Connector Style	Contact Finish Thickness	Contact Finish Thickness
3M (TC) 12226-5150-00FR	Panel Mount Right Angle Through Hole	Board Lock Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.76 Ám	30 Áin
3M (TC) 12226-1150-00PL	Panel Mount Through Hole	Board Lock Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.203 çm	8 çin
3M (TC) 12226-8200-00PL	Surface Mount Right Angle		Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.203 çm	8 çin
3M (TC) 12226-8250-00PL	Surface Mount Right Angle	Board Guide Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.203 çm	8 çin
3M (TC) 12226-1150-00FR	Panel Mount Through Hole	Board Lock Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.76 Ám	30 Áin
3M (TC) 12226-8250-00FR	Surface Mount Right Angle	Board Guide Shielded	Solder	Receptacle	26	Gold	2	M2	Outer Shroud Contacts	0.76 Ám	30 Áin
3M (TC) 12226-1110-00FR	Through Hole	Shielded	Solder	Receptacle	26	Gold	2		Outer Shroud Contacts	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.67
		10	$ 13.32
		25	$ 12.48
		50	$ 11.89
		100	$ 11.32
		300	$ 10.48
		500	$ 10.11
		1000	$ 9.62
Newark	Each	1	$ 20.91
		10	$ 18.98
		25	$ 18.51
		50	$ 17.12
		100	$ 16.19
		250	$ 14.72
		500	$ 13.79
		1000	$ 12.71

Description

General part information

12226 Series

The 12226-8250-00FR is a 26-way 0.80mm shielded surface mount Right Angle Receptacle with gold-plated copper alloy contact, solder termination and PCB mounting. This 122 series connector is high temperature nylon insulated, wiper on wiper contact for reliable repetitive mating.
