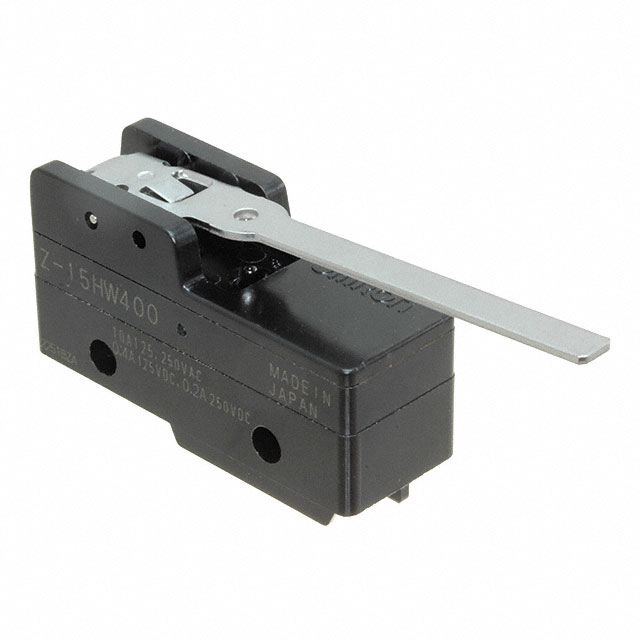

Z-15HW400

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Z-15HW400

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z-15HW400

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	6 A, 15 A
Differential Travel	0.05 in
Differential Travel	1.3 mm
Electrical Life	500000 Cycles
Ingress Protection	IP40
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	28 gf
Operating Position	19 mm
Operating Position	0.748 "
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	5.6 mm
Overtravel	0.219 in
Pretravel	10 mm
Pretravel	0.394 in
Release Force	3.5 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Z-15H Series

Part	Mounting Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Current Rating (Amps)	Pretravel	Pretravel	Electrical Life	Operating Force	Mechanical Life	Actuator Type	Voltage Rating - DC	Switch Function	Features	Voltage Rating - AC	Operating Position	Operating Position	Release Force	Differential Travel	Differential Travel	Overtravel [x]	Overtravel [x]	Overtravel	Overtravel	Operating Force [Min]	Operating Force [Max]
Omron Electronics Inc-EMC Div Z-15HNJS55-MR 1M	Chassis Mount	IP62	80 C	-15 °C	SPDT	Cable Leads	2 A 15 A	25 mm	0.984 "	100000 Cycles	15 gf	1000000 Cycles	Spring Wire	30 V	On-Mom	Cable Length 1m	125 V
Omron Electronics Inc-EMC Div Z-15HW7855-M19L	Chassis Mount	IP62	80 C	-15 °C	SPDT	Cable Leads	6 A 15 A			500000 Cycles		1000000 Cycles	Lever Roller	30 V	On-Mom		125 V
Omron Electronics Inc-EMC Div Z-15HW24-B	Chassis Mount	IP00	80 C	-25 °C	SPDT	Screw Terminal	2 A 15 A	19.8 mm	0.78 in	500000 Cycles	6 gf	20000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.78 in	19.8 mm	0.5 gf	2 mm	0.08 in	10 mm	0.394 "
Omron Electronics Inc-EMC Div Z-15HW24	Chassis Mount	IP00	80 C	-25 °C	SPDT	Solder Lug	2 A 15 A	19.8 mm	0.78 in	500000 Cycles	6 gf	20000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.78 in	19.8 mm	0.5 gf	2 mm	0.08 in	10 mm	0.394 "
Omron Electronics Inc-EMC Div Z-15HW24-B7-K	Chassis Mount	IP40	80 C	-25 °C	SPDT	Screw Terminal	6 A 15 A	19.8 mm	0.78 in	500000 Cycles	6 gf	20000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.78 in	19.8 mm	0.5 gf	2 mm	0.08 in	10 mm	0.394 "
Omron Electronics Inc-EMC Div Z-15HW400	Chassis Mount	IP40	80 C	-25 °C	SPDT	Solder Lug	6 A 15 A	10 mm	0.394 in	500000 Cycles	28 gf	1000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.748 "	19 mm	3.5 gf	1.3 mm	0.05 in			5.6 mm	0.219 in
Omron Electronics Inc-EMC Div Z-15H-B	Chassis Mount	IP00	80 C	-25 °C	SPDT	Screw Terminal	2 A 15 A	0.3 mm	0.012 in	500000 Cycles		20000000 Cycles	Round (Pin Plunger)	30 V	On-Mom		125 V	0.625 in	15.9 mm	114 gf	0.025 mm	0.001 in			0.13 mm	0.005 in	200 gf	280 gf
Omron Electronics Inc-EMC Div Z-15HW7855-B	Chassis Mount	IP62	80 C	-15 °C	SPDT	Screw Terminal	2 A 10 A	10 mm	0.394 in		4 gf		Wire Lever	30 V	On-Mom		125 V	0.787 in	20 mm	0.3 gf					6 mm	0.235 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.91
		10	$ 15.69
		25	$ 14.38
		50	$ 13.51
		100	$ 12.64
		250	$ 12.20
		500	$ 11.76

Description

General part information

Z-15H Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
