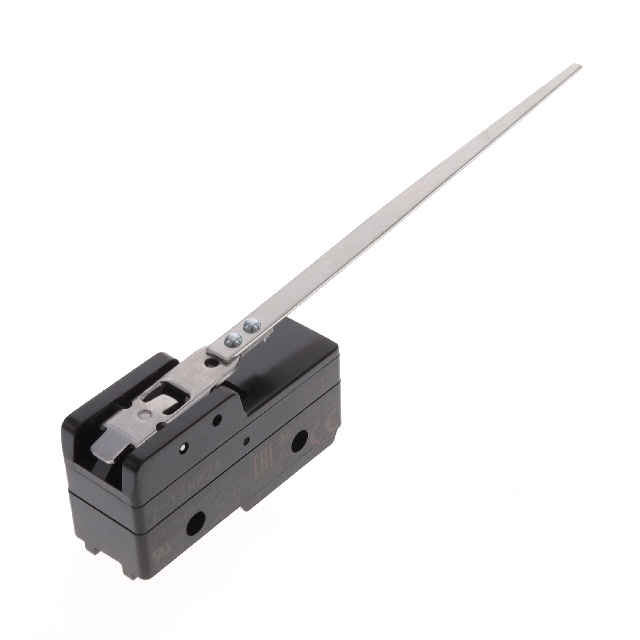

Z-15HW24

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Z-15HW24

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z-15HW24

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	2 A, 15 A
Differential Travel	2 mm
Differential Travel	0.08 in
Electrical Life	500000 Cycles
Ingress Protection	IP00
Mechanical Life	20000000 Cycles
Mounting Type	Chassis Mount
Operating Force	6 gf
Operating Position	0.78 in
Operating Position	19.8 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel [x]	10 mm
Overtravel [x]	0.394 "
Pretravel	19.8 mm
Pretravel	0.78 in
Release Force	0.5 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Z-15H Series

Part	Mounting Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Current Rating (Amps)	Pretravel	Pretravel	Electrical Life	Operating Force	Mechanical Life	Actuator Type	Voltage Rating - DC	Switch Function	Features	Voltage Rating - AC	Operating Position	Operating Position	Release Force	Differential Travel	Differential Travel	Overtravel [x]	Overtravel [x]	Overtravel	Overtravel	Operating Force [Min]	Operating Force [Max]
Omron Electronics Inc-EMC Div Z-15HNJS55-MR 1M	Chassis Mount	IP62	80 C	-15 °C	SPDT	Cable Leads	2 A 15 A	25 mm	0.984 "	100000 Cycles	15 gf	1000000 Cycles	Spring Wire	30 V	On-Mom	Cable Length 1m	125 V
Omron Electronics Inc-EMC Div Z-15HW7855-M19L	Chassis Mount	IP62	80 C	-15 °C	SPDT	Cable Leads	6 A 15 A			500000 Cycles		1000000 Cycles	Lever Roller	30 V	On-Mom		125 V
Omron Electronics Inc-EMC Div Z-15HW24-B	Chassis Mount	IP00	80 C	-25 °C	SPDT	Screw Terminal	2 A 15 A	19.8 mm	0.78 in	500000 Cycles	6 gf	20000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.78 in	19.8 mm	0.5 gf	2 mm	0.08 in	10 mm	0.394 "
Omron Electronics Inc-EMC Div Z-15HW24	Chassis Mount	IP00	80 C	-25 °C	SPDT	Solder Lug	2 A 15 A	19.8 mm	0.78 in	500000 Cycles	6 gf	20000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.78 in	19.8 mm	0.5 gf	2 mm	0.08 in	10 mm	0.394 "
Omron Electronics Inc-EMC Div Z-15HW24-B7-K	Chassis Mount	IP40	80 C	-25 °C	SPDT	Screw Terminal	6 A 15 A	19.8 mm	0.78 in	500000 Cycles	6 gf	20000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.78 in	19.8 mm	0.5 gf	2 mm	0.08 in	10 mm	0.394 "
Omron Electronics Inc-EMC Div Z-15HW400	Chassis Mount	IP40	80 C	-25 °C	SPDT	Solder Lug	6 A 15 A	10 mm	0.394 in	500000 Cycles	28 gf	1000000 Cycles	Lever Straight	30 V	On-Mom		125 V	0.748 "	19 mm	3.5 gf	1.3 mm	0.05 in			5.6 mm	0.219 in
Omron Electronics Inc-EMC Div Z-15H-B	Chassis Mount	IP00	80 C	-25 °C	SPDT	Screw Terminal	2 A 15 A	0.3 mm	0.012 in	500000 Cycles		20000000 Cycles	Round (Pin Plunger)	30 V	On-Mom		125 V	0.625 in	15.9 mm	114 gf	0.025 mm	0.001 in			0.13 mm	0.005 in	200 gf	280 gf
Omron Electronics Inc-EMC Div Z-15HW7855-B	Chassis Mount	IP62	80 C	-15 °C	SPDT	Screw Terminal	2 A 10 A	10 mm	0.394 in		4 gf		Wire Lever	30 V	On-Mom		125 V	0.787 in	20 mm	0.3 gf					6 mm	0.235 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.38
		10	$ 16.89
		25	$ 15.67
		50	$ 14.81
		100	$ 14.00
		250	$ 12.99
		500	$ 12.27

Description

General part information

Z-15H Series

Switch SPDT Chassis Mount
