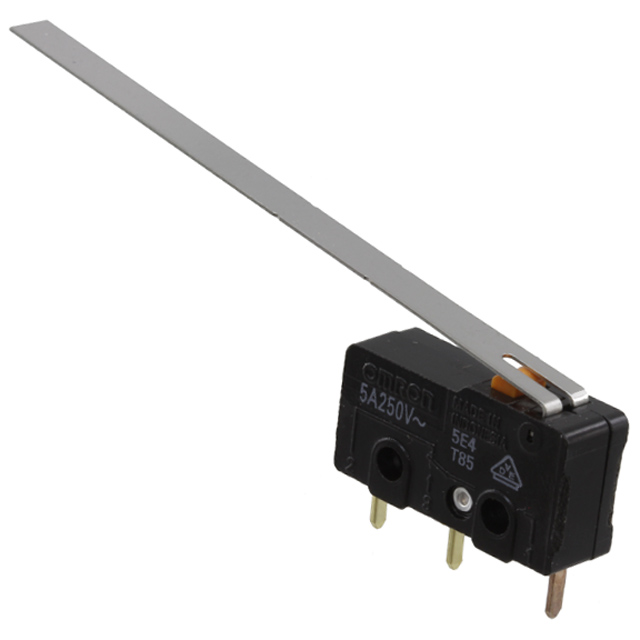

SS-5GL1131

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

SS-5GL1131

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-5GL1131

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	5 A
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	30000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SS-5 Series

Part	Voltage Rating - AC	Circuit	Current Rating (Amps)	Ingress Protection	Actuator Type	Termination Style	Electrical Life	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Function	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Position	Operating Position	Operating Force	Release Force	Operating Position [custom]	Operating Position [custom]	Voltage Rating - DC	Pretravel	Pretravel
Omron Electronics Inc-EMC Div SS-5GL1131	125 V	SPDT	5 A	IP40	Lever Straight	Solder Lug	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Chassis Mount	On-Mom
Omron Electronics Inc-EMC Div SS-5GLD2	125 V	SPDT	5 A	IP40	Lever Straight	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole Right Angle	On-Mom	1.2 mm	0.047 "	0.8 mm	0.031 "	8.8 mm	0.345 in	50 gf	6.118 gf
Omron Electronics Inc-EMC Div SS-5GL14-F	125 V	SPDT	5 A	IP40	Formed Lever	Solder Lug	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Chassis Mount	On-Mom	1.2 mm	0.047 "	0.8 mm	0.031 "			16 gf	2.039 gf	10.1 mm	0.398 in
Omron Electronics Inc-EMC Div SS-5FL111-3T	250 V	SPST-NO	3 A 5 A	IP40	Lever Straight	Quick Connect - 0.110" (2.8mm)	100000 Cycles	100000 Cycles	-25 °C	85 °C	Chassis Mount	Off-Mom	1 mm	0.04 in	3 mm	0.118 "	8.8 mm	0.345 in	55 gf	1.02 gf			30 V
Omron Electronics Inc-EMC Div SS-5GL111-3	125 V	SPST-NO	5 A	IP40	Lever Straight	Solder Lug	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Chassis Mount	Off-Mom	1.2 mm	0.047 "	1.2 mm	0.047 in	8.8 mm	0.345 in	40 gf	3.059 gf
Omron Electronics Inc-EMC Div SS-5GL13D1	125 V	SPDT	5 A	IP40	Lever Simulated Roller	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole Right Angle	On-Mom	1.2 mm	0.047 "	0.8 mm	0.031 "			50 gf	6.118 gf
Omron Electronics Inc-EMC Div SS-5D-T	125 V	SPDT	5 A	IP40	Round (Pin Plunger)	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole	On-Mom	0.5 mm	0.02 in	0.1 mm	0.004 in	8.4 mm	0.33 in	150 gf	25 gf				0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-5GL4025
Omron Electronics Inc-EMC Div SS-5GL111-FD2	125 V	SPDT	5 A	IP40	Lever Straight	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole Right Angle	On-Mom	1.2 mm	0.047 "	1.2 mm	0.047 in	8.8 mm	0.345 in		2.039 gf
Omron Electronics Inc-EMC Div SS-5L	125 V	SPDT	5 A	IP40	Round (Pin Plunger)	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole	On-Mom	0.5 mm	0.02 in	0.1 mm	0.004 in	8.4 mm	0.33 in	150 gf	25 gf				0.02 in	0.5 mm
