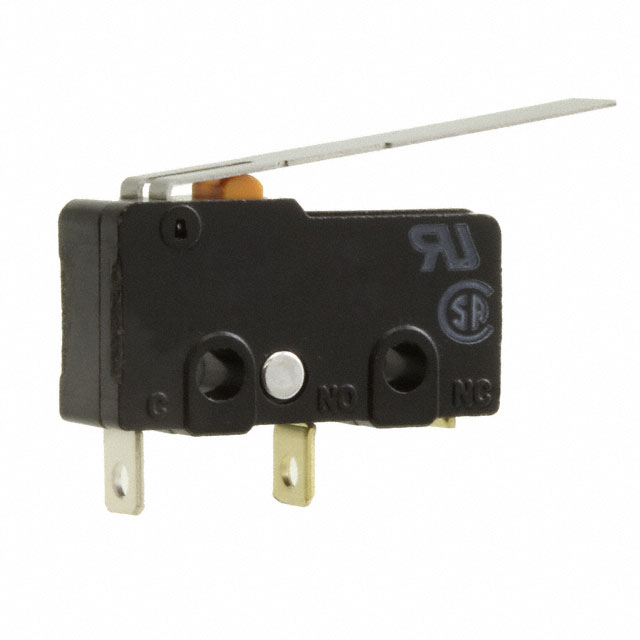

SS-5GL111-3

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

SS-5GL111-3

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPST-NO 5A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-5GL111-3

Actuator Type	Lever, Straight
Circuit	SPST-NO
Current Rating (Amps)	5 A
Differential Travel	0.047 in
Differential Travel	1.2 mm
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	30000000 Cycles
Mounting Type	Chassis Mount
Operating Force	40 gf
Operating Position	8.8 mm
Operating Position	0.345 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overtravel	1.2 mm
Overtravel	0.047 "
Release Force	3.059 gf
Switch Function	Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SS-5 Series

Part	Voltage Rating - AC	Circuit	Current Rating (Amps)	Ingress Protection	Actuator Type	Termination Style	Electrical Life	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Function	Overtravel	Overtravel	Differential Travel	Differential Travel	Operating Position	Operating Position	Operating Force	Release Force	Operating Position [custom]	Operating Position [custom]	Voltage Rating - DC	Pretravel	Pretravel
Omron Electronics Inc-EMC Div SS-5GL1131	125 V	SPDT	5 A	IP40	Lever Straight	Solder Lug	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Chassis Mount	On-Mom
Omron Electronics Inc-EMC Div SS-5GLD2	125 V	SPDT	5 A	IP40	Lever Straight	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole Right Angle	On-Mom	1.2 mm	0.047 "	0.8 mm	0.031 "	8.8 mm	0.345 in	50 gf	6.118 gf
Omron Electronics Inc-EMC Div SS-5GL14-F	125 V	SPDT	5 A	IP40	Formed Lever	Solder Lug	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Chassis Mount	On-Mom	1.2 mm	0.047 "	0.8 mm	0.031 "			16 gf	2.039 gf	10.1 mm	0.398 in
Omron Electronics Inc-EMC Div SS-5FL111-3T	250 V	SPST-NO	3 A 5 A	IP40	Lever Straight	Quick Connect - 0.110" (2.8mm)	100000 Cycles	100000 Cycles	-25 °C	85 °C	Chassis Mount	Off-Mom	1 mm	0.04 in	3 mm	0.118 "	8.8 mm	0.345 in	55 gf	1.02 gf			30 V
Omron Electronics Inc-EMC Div SS-5GL111-3	125 V	SPST-NO	5 A	IP40	Lever Straight	Solder Lug	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Chassis Mount	Off-Mom	1.2 mm	0.047 "	1.2 mm	0.047 in	8.8 mm	0.345 in	40 gf	3.059 gf
Omron Electronics Inc-EMC Div SS-5GL13D1	125 V	SPDT	5 A	IP40	Lever Simulated Roller	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole Right Angle	On-Mom	1.2 mm	0.047 "	0.8 mm	0.031 "			50 gf	6.118 gf
Omron Electronics Inc-EMC Div SS-5D-T	125 V	SPDT	5 A	IP40	Round (Pin Plunger)	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole	On-Mom	0.5 mm	0.02 in	0.1 mm	0.004 in	8.4 mm	0.33 in	150 gf	25 gf				0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-5GL4025
Omron Electronics Inc-EMC Div SS-5GL111-FD2	125 V	SPDT	5 A	IP40	Lever Straight	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole Right Angle	On-Mom	1.2 mm	0.047 "	1.2 mm	0.047 in	8.8 mm	0.345 in		2.039 gf
Omron Electronics Inc-EMC Div SS-5L	125 V	SPDT	5 A	IP40	Round (Pin Plunger)	PC Pin	200000 Cycles	30000000 Cycles	-25 °C	85 °C	Through Hole	On-Mom	0.5 mm	0.02 in	0.1 mm	0.004 in	8.4 mm	0.33 in	150 gf	25 gf				0.02 in	0.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.94
		10	$ 1.83
		500	$ 1.17
		1000	$ 1.14
		5000	$ 1.03
