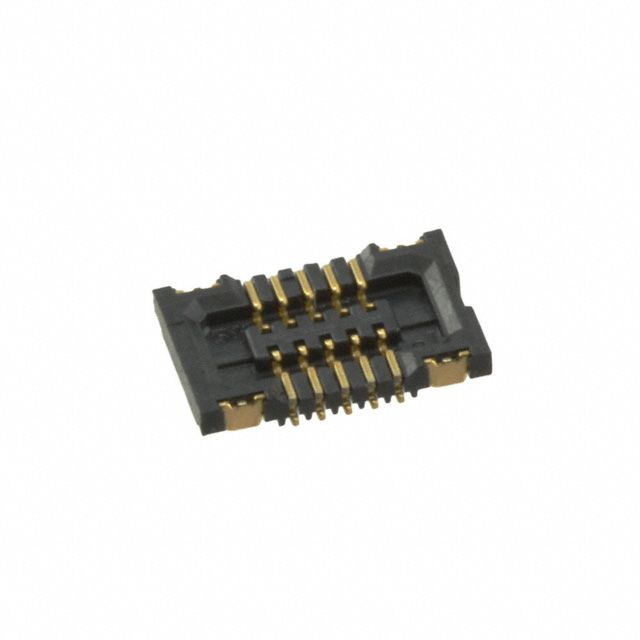

BM10NB(0.6)-10DS-0.4V(75)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 10POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BM10NB(0.6)-10DS-0.4V(75)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention
Height Above Board	0.024 in
Height Above Board	0.61 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Rows	Features	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. BM10NB(0.8)-10DS-0.4V(49)
Hirose Electric USA, Inc. BM10NB(0.8)-40DS-0.4V(73)
Hirose Electric USA, Inc. BM10NB(0.8)-40DS-0.4V(51)	Gold	0.016 in	0.4 mm	40	Center Strip Contacts Receptacle	Surface Mount	0.8 mm	0.8 mm	0.031 in	2	Solder Retention
Hirose Electric USA, Inc. BM10NB(0.6)-10DS-0.4V(73)
Hirose Electric USA, Inc. BM10NB(0.8)-40DS-0.4V(47)
Hirose Electric USA, Inc. BM10NB(0.8)-14DS-0.4V(51)	Gold	0.016 in	0.4 mm	14	Center Strip Contacts Receptacle	Surface Mount	0.8 mm	0.8 mm	0.031 in	2	Solder Retention
Hirose Electric USA, Inc. BM10NB(0.8)-20DS-0.4V(55)
Hirose Electric USA, Inc. BM10NB(0.6)-10DS-0.4V(75)	Gold	0.016 in	0.4 mm	10	Center Strip Contacts Receptacle	Surface Mount	0.6 mm			2	Solder Retention	0.024 in	0.61 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. BM10NB(0.8)-30DS-0.4V(73)
Hirose Electric USA, Inc. BM10NB(0.8)-60DS-0.4V(75)	Gold	0.016 in	0.4 mm	60	Center Strip Contacts Receptacle	Surface Mount	0.8 mm	0.8 mm	0.031 in	2	Solder Retention			4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
