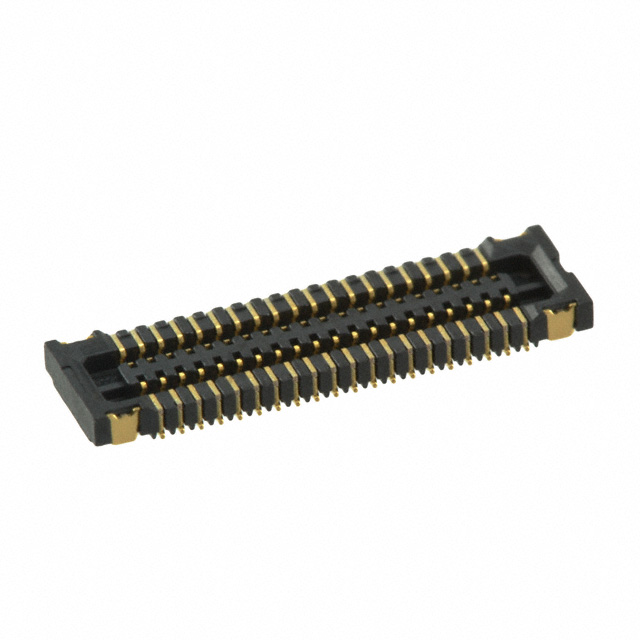

BM10NB(0.8)-40DS-0.4V(51)
ActiveHirose Electric USA, Inc.
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
BM10NB(0.8)-40DS-0.4V(51)
ActiveHirose Electric USA, Inc.
CONN RCPT 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM10NB(0.8)-40DS-0.4V(51) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board [z] | 0.8 mm |
| Height Above Board [z] | 0.031 in |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 1.04 | |||
| 25 | $ 1.00 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.68 | |||
| 2500 | $ 0.62 | |||
| Digi-Reel® | 1 | $ 1.24 | ||
| 10 | $ 1.04 | |||
| 25 | $ 1.00 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.85 | |||
| 500 | $ 0.77 | |||
| 1000 | $ 0.68 | |||
| 2500 | $ 0.62 | |||
| Tape & Reel (TR) | 8000 | $ 0.55 | ||
| 16000 | $ 0.53 | |||
Description
General part information
BM10NB Series
40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
