FX11LA-100S/10-SV(71)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ]0.5MM PITCH 2.0-3.0MM HEIGHT WITH GROUND PLATE HIGH-SPEED BOARD-TO-BOARD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX11 Series Datasheet

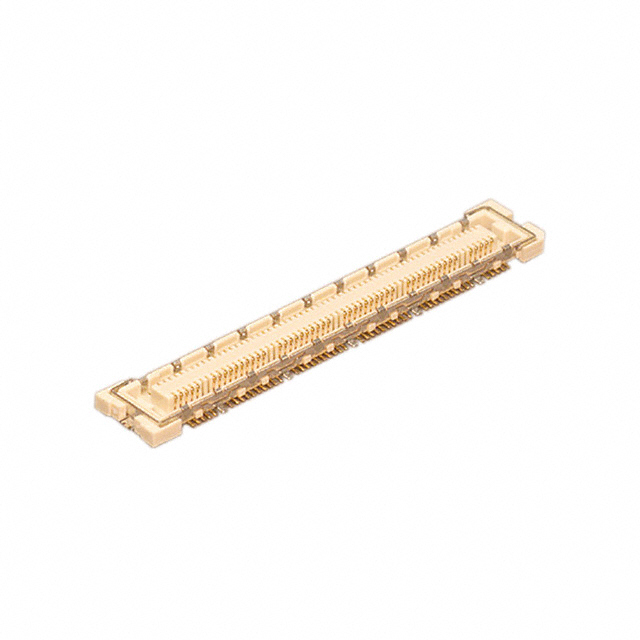

FX11LA-100S/10-SV(71)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ]0.5MM PITCH 2.0-3.0MM HEIGHT WITH GROUND PLATE HIGH-SPEED BOARD-TO-BOARD

Deep-Dive with AI

DocumentsFX11 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX11LA-100S/10-SV(71)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide, Solder Retention, Ground Plate
Height Above Board	0.065 in
Height Above Board	1.65 mm
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX11LA Series

Part	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type	Contact Finish	Features	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows
Hirose Electric USA, Inc. FX11LA-68S-SV	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	Surface Mount	68	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-120S/12-SV	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	120	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-80P/8-SV	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	80	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-80P/8-SV(71)	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	80	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-116S-SV(22)	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	Surface Mount	116	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-116P-SV(21)	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Solder Retention	Surface Mount	116	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-116S-SV(21)	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	Surface Mount	116	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-68P-SV	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Solder Retention	Surface Mount	68	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-100S/10-SV(71)	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	100	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-92P-SV	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Solder Retention	Surface Mount	92	0.5 mm	0.02 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.77
		10	$ 5.18
		25	$ 4.68
		40	$ 4.44
		80	$ 4.12
		230	$ 3.68
		440	$ 3.45
		945	$ 3.20
		2400	$ 2.93
Newark	Each	1	$ 5.22
		480	$ 4.62

Description

General part information

FX11LA Series

100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Documents

Technical documentation and resources

FX11 Series

Datasheet
