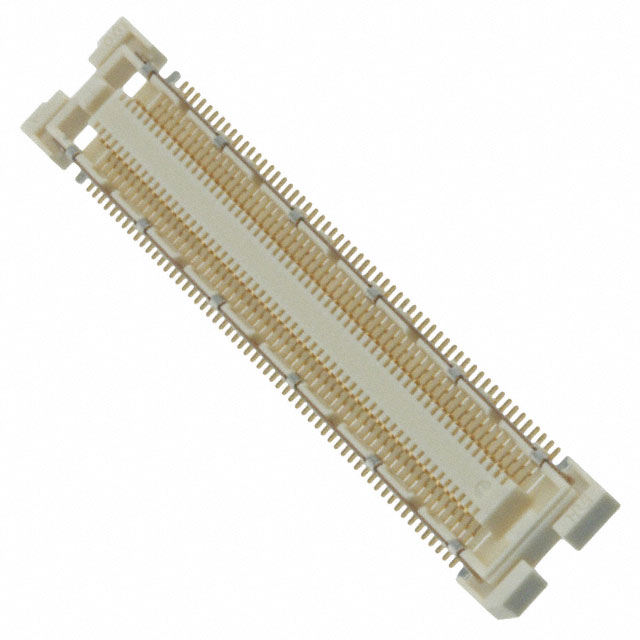

FX11LA-116S-SV(21)

Active

Hirose Electric USA, Inc.

CONN RCPT 116POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX11LA-116S-SV Spec Datasheet

FX11LA-116S-SV(21)

Active

Hirose Electric USA, Inc.

CONN RCPT 116POS SMD GOLD

Deep-Dive with AI

DocumentsFX11LA-116S-SV Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX11LA-116S-SV(21)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.065 in
Height Above Board	1.65 mm
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	116
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX11LA Series

Part	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type	Contact Finish	Features	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows
Hirose Electric USA, Inc. FX11LA-68S-SV	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	Surface Mount	68	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-120S/12-SV	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	120	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-80P/8-SV	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	80	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-80P/8-SV(71)	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	80	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-116S-SV(22)	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	Surface Mount	116	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-116P-SV(21)	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Solder Retention	Surface Mount	116	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-116S-SV(21)	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Solder Retention	Surface Mount	116	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-68P-SV	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Solder Retention	Surface Mount	68	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-100S/10-SV(71)	4 Áin	0.1 Ám	0.065 in	1.65 mm	2 mm	Center Strip Contacts Receptacle	Gold	Board Guide Ground Plate Solder Retention	Surface Mount	100	0.5 mm	0.02 in	2
Hirose Electric USA, Inc. FX11LA-92P-SV	4 Áin	0.1 Ám	0.075 "	1.9 mm	2 mm	Header Outer Shroud Contacts	Gold	Board Guide Solder Retention	Surface Mount	92	0.5 mm	0.02 in	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.98
	Digi-Reel®	1	$ 4.98
	Tape & Reel (TR)	1000	$ 2.94

Description

General part information

FX11LA Series

116 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
