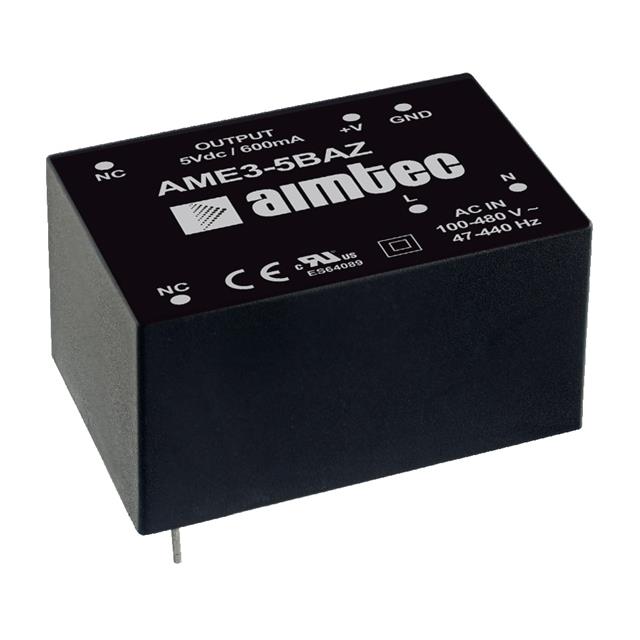

AME3-24SBAZ

Active

aimtec

AC/DC CONVERTER 24V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AME3-24SBAZ

Active

aimtec

AC/DC CONVERTER 24V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AME3-24SBAZ

Applications	ITE (Commercial)
Approval Agency	CE, FCC, cURus
Current - Output (Max) [Max]	125 mA
Efficiency	71 %
Line Regulation	3 %
Load Regulation	5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	4-DIP Module
Power (Watts)	3 W
Size / Dimension [x]	35.6 mm
Size / Dimension [x]	1.4 in
Size / Dimension [y]	0.92 "
Size / Dimension [y]	23.3 mm
Size / Dimension [z]	0.76 "
Size / Dimension [z]	19.3 mm
Type	Enclosed
Voltage - Input [Max]	745 VDC, 528 VAC
Voltage - Input [Min]	130 VDC, 90 VAC
Voltage - Output 1	24 V

AME3 Series

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Load Regulation	Number of Outputs	Line Regulation	Power (Watts)	Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Applications	Features	Package / Case	Package / Case	Efficiency	Voltage - Output 1	Weight	Weight	Size / Dimension [z]	Size / Dimension [y]
aimtec AME3-24SHAVZ	CE	70 °C	-25 °C	Through Hole	0.5 %	1	0.3 %	3 W	Enclosed	85 VAC 120 VDC	264 VAC 373 VDC	1.27 in	1.07 in	27.3 mm	32.3 mm	21.8 mm	0.86 in	125 mA	Household Appliances ITE (Commercial)	Universal Input	4 Lead	9-DIP Module	75 %	24 V	0.055 lb	25 g
aimtec AME3-24SAZ	CE cURus FCC	80 ¯C	-40 °C	Through Hole	5 %	1	3 %	3 W	Enclosed	90 VAC 130 VDC	305 VAC 430 VDC	1.4 in	0.92 "		35.6 mm		0.76 "	125 mA	ITE (Commercial)			4-DIP Module	81 %	24 V			19.3 mm	23.3 mm
aimtec AME3-05SHAVZ	CE	70 °C	-40 °C	Through Hole	0.5 %	1	0.3 %	3 W	Enclosed			1.27 in	1.07 in	27.3 mm	32.3 mm	21.8 mm	0.85 "	600 mA	Household Appliances ITE (Commercial)	Universal Input	4 Lead	9-DIP Module	72 %	5 V	0.055 lb	25 g
aimtec AME3-24SBAZ	CE cURus FCC	80 ¯C	-40 °C	Through Hole	5 %	1	3 %	3 W	Enclosed	90 VAC 130 VDC	528 VAC 745 VDC	1.4 in	0.92 "		35.6 mm		0.76 "	125 mA	ITE (Commercial)			4-DIP Module	71 %	24 V			19.3 mm	23.3 mm
aimtec AME3-24SCJZ		70 °C	-25 °C	Through Hole		1		3 W	Enclosed	85 VAC 100 V	264 VAC 370 VDC	1.46 in	0.96 in	24.5 mm	37 mm	18 mm	0.71 in	125 mA	ITE (Commercial)	Universal Input		26-DIP Module 5 Leads	78 %	24 V
aimtec AME3-24SBJZ				Through Hole	2.5 %	1	1.5 %	3 W	Enclosed	90 VAC 100 V	528 VAC 745 VDC	2 in	25.4 mm	25.4 mm	50.8 mm	15.2 mm	0.6 "	125 mA	ITE (Commercial)			4-DIP Module	76 %	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AME3 Series

Enclosed AC DC Converters 1 Output 24V 125mA 90 ~ 528 VAC, 130 ~ 745 VDC Input
