R30-1000602

Active

Harwin Inc.

6.00MM M3 METRIC THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

6.00MM M3 METRIC THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Between Board Height	Between Board Height	Plating	Screw, Thread Size	Material	Length - Overall [x]	Length - Overall [x]	Type	Threaded/Unthreaded	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R30-1001802	Female	18 mm	0.709 in	Nickel	M3x0.5	Brass	0.709 "	18 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1001502	Female	15 mm	0.591 in	Nickel	M3x0.5	Brass	0.591 in		Hex Standoff	Threaded	0.197 in	5 mm	15 mm
Harwin Inc. R30-1002802	Female	28 mm	1.102 in	Nickel	M3x0.5	Brass			Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1003002	Female	30 mm	1.181 in	Nickel	M3x0.5	Brass	1.181 in	30 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1000502	Female	5 mm	0.197 in	Nickel	M3x0.5	Brass	0.197 "	5 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1000602	Female	6 mm	0.236 in	Nickel	M3x0.5	Brass	0.236 in	6 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1002202	Female	22 mm	0.866 in	Nickel	M3x0.5	Brass	0.866 "	22 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1001602	Female			Nickel	M3x0.5	Brass	0.63 "	16 mm	Hex Standoff	Threaded	0.197 in	5 mm		16 mm	0.63 in
Harwin Inc. R30-1001402	Female	14 mm	0.551 in	Nickel	M3x0.5	Brass	0.551 "	14 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1002002	Female	20 mm	0.787 in	Nickel	M3x0.5	Brass	0.787 "	20 mm	Hex Standoff	Threaded	0.197 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

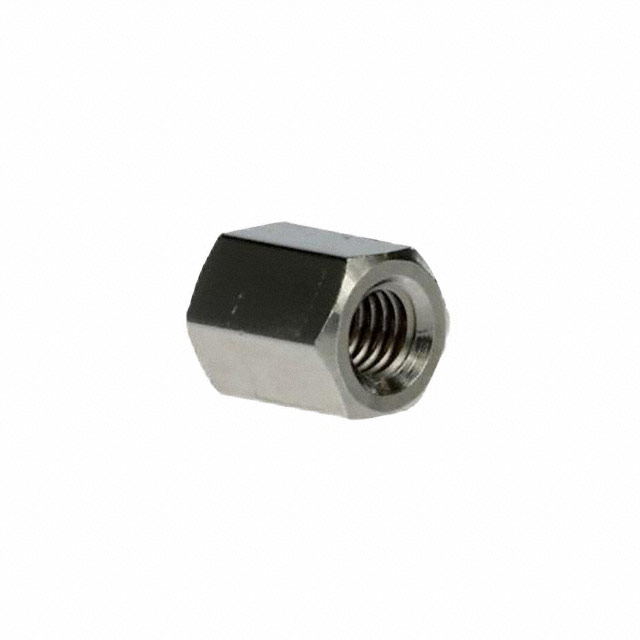

Hex Standoff Threaded M3x0.5 Brass 0.236" (6.00mm)

Technical documentation and resources
