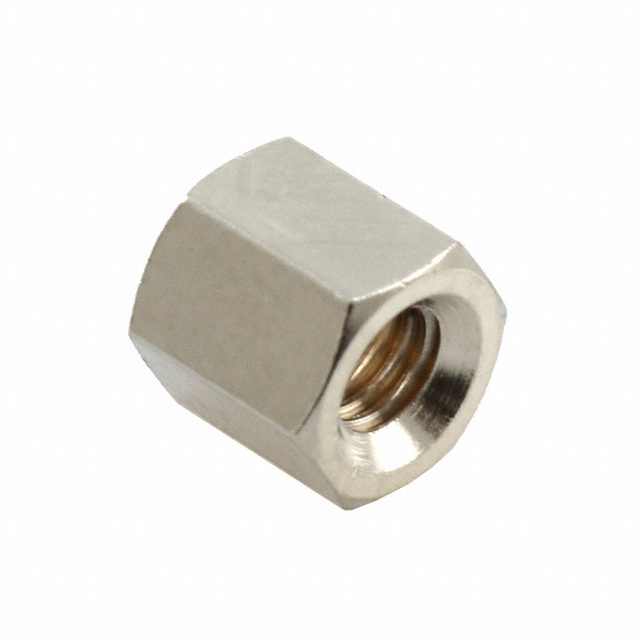

R30-1000502

Active

Harwin Inc.

5.00MM M3 METRIC THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

5.00MM M3 METRIC THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Between Board Height	Between Board Height	Plating	Screw, Thread Size	Material	Length - Overall [x]	Length - Overall [x]	Type	Threaded/Unthreaded	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R30-1001802	Female	18 mm	0.709 in	Nickel	M3x0.5	Brass	0.709 "	18 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1001502	Female	15 mm	0.591 in	Nickel	M3x0.5	Brass	0.591 in		Hex Standoff	Threaded	0.197 in	5 mm	15 mm
Harwin Inc. R30-1002802	Female	28 mm	1.102 in	Nickel	M3x0.5	Brass			Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1003002	Female	30 mm	1.181 in	Nickel	M3x0.5	Brass	1.181 in	30 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1000502	Female	5 mm	0.197 in	Nickel	M3x0.5	Brass	0.197 "	5 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1000602	Female	6 mm	0.236 in	Nickel	M3x0.5	Brass	0.236 in	6 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1002202	Female	22 mm	0.866 in	Nickel	M3x0.5	Brass	0.866 "	22 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1001602	Female			Nickel	M3x0.5	Brass	0.63 "	16 mm	Hex Standoff	Threaded	0.197 in	5 mm		16 mm	0.63 in
Harwin Inc. R30-1001402	Female	14 mm	0.551 in	Nickel	M3x0.5	Brass	0.551 "	14 mm	Hex Standoff	Threaded	0.197 in	5 mm
Harwin Inc. R30-1002002	Female	20 mm	0.787 in	Nickel	M3x0.5	Brass	0.787 "	20 mm	Hex Standoff	Threaded	0.197 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M3x0.5 Brass 0.197" (5.00mm)
