09140010421

Active

HARTING Technology Group

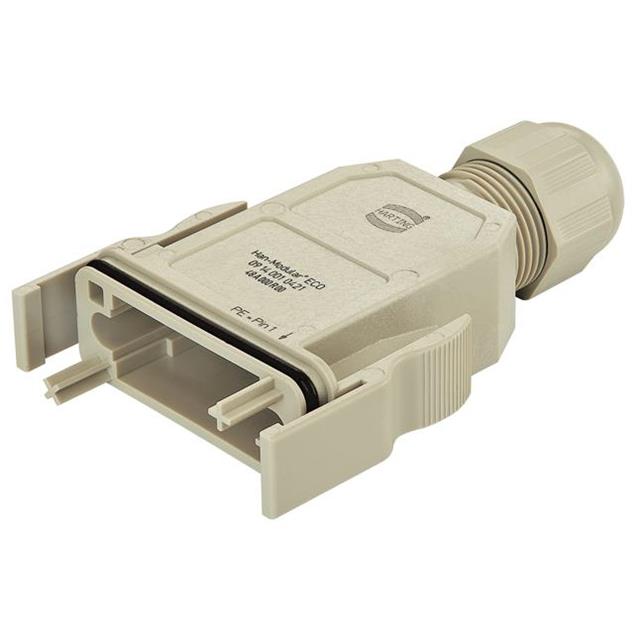

CONNECTOR BACKSHELL, TOP ENTRY HOOD, HAN-MODULAR SINGLE MODULES, 180 , PC (POLYCARBONATE) BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09140010421

Active

HARTING Technology Group

CONNECTOR BACKSHELL, TOP ENTRY HOOD, HAN-MODULAR SINGLE MODULES, 180 , PC (POLYCARBONATE) BODY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140010421

Connector Type	Hood
Housing Color	Gray
Housing Material	Polycarbonate (PC)
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Side Latch Lock on Hood
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	2.362 in
Size / Dimension [x]	60 mm
Size / Dimension [y]	21.8 mm
Size / Dimension [y]	0.858 in
Size / Dimension [z]	3.067 in
Size / Dimension [z]	77.9 mm
Style	Top Entry

09140010 Series

Part	Features	Lock Location	Connector Type	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Style	Housing Material	Ingress Protection	Housing Color
HARTING Technology Group 09140010301	Grounding Terminal	Locking Clip (1) on Base Bottom	Base - Panel Mount	Nickel	125 °C	-40 °C	26.9 mm	49 mm	1.929 in	35 mm	1.059 in	1.378 "	Bottom Entry	Zinc Die Cast	IP65 - Dust Tight Water Resistant
HARTING Technology Group 09140010420		Side Latch Lock on Hood	Hood		85 °C	-40 °C	77.9 mm	60 mm	2.362 in	21.8 mm	3.067 in	0.858 in	Top Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010430		Side Latch Lock on Hood	Hood		85 °C	-40 °C	84.9 mm	60 mm	2.362 in	21.8 mm	3.343 in	0.858 in	Top Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Green
HARTING Technology Group 09140010720	Cable to Cable	Side Latch Lock on Hood	Hood - Coupling		85 °C	-40 °C	67.1 mm	56.3 mm	2.217 "	24.4 mm	2.642 "	0.961 "	Bottom Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010422		Side Latch Lock on Hood	Hood		85 °C	-40 °C	78.9 mm	60 mm	2.362 in	21.8 mm	3.106 in	0.858 in	Top Entry	Polycarbonate (PC)		Gray
HARTING Technology Group 09140010421		Side Latch Lock on Hood	Hood		85 °C	-40 °C	77.9 mm	60 mm	2.362 in	21.8 mm	3.067 in	0.858 in	Top Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010423		Side Latch Lock on Hood	Hood		85 °C	-40 °C	78.9 mm	60 mm	2.362 in	21.8 mm	3.106 in	0.858 in	Top Entry	Polycarbonate (PC)		Gray
HARTING Technology Group 09140010330		Side Latch Lock on Hood	Base - Panel Mount		85 °C	-40 °C	36.9 mm	54 mm	2.126 in	21.8 mm	1.453 in	0.858 in	Bottom Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Green
HARTING Technology Group 09140010321		Side Latch Lock on Hood	Base - Panel Mount		85 °C	-40 °C	36.9 mm	54 mm	2.126 in	21.8 mm	1.453 in	0.858 in	Bottom Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010303		Locking Clip (1) on Base Bottom	Base - Panel Mount				27 mm	49 mm	1.929 in	34.6 mm	1.063 "	1.362 "	Bottom Entry			Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.52
		10	$ 15.69
		25	$ 14.02
		50	$ 12.94
		100	$ 11.99
		250	$ 10.92
		500	$ 10.22
		1000	$ 9.60
Newark	Each	1	$ 16.70
		10	$ 15.18
		25	$ 14.74
		50	$ 13.65
		100	$ 12.93
		250	$ 11.84
		500	$ 10.97
		1000	$ 10.10

Description

General part information

09140010 Series

Hood Connector Top Entry IP65 - Dust Tight, Water Resistant
