09140010430

Active

HARTING Technology Group

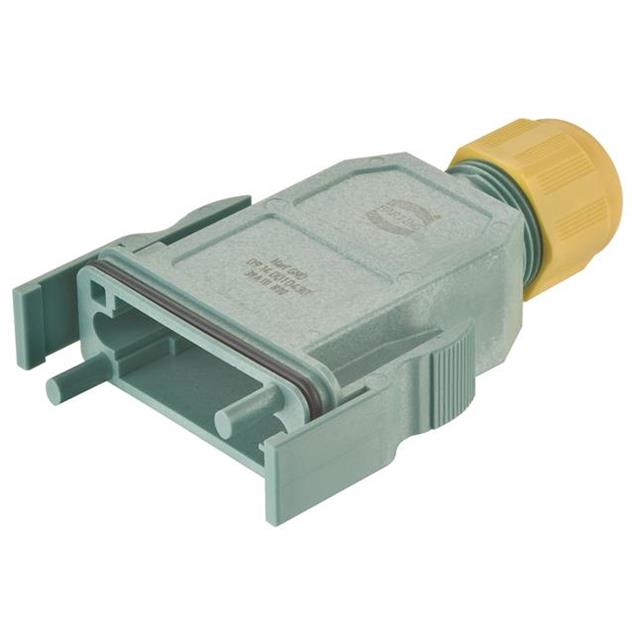

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, PC (POLYCARBONATE) BODY, LATCH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

09140010430

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HOOD, TOP ENTRY, PC (POLYCARBONATE) BODY, LATCH

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140010430

Connector Type	Hood
Housing Color	Green
Housing Material	Polycarbonate (PC)
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Side Latch Lock on Hood
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	21.8 mm
Size / Dimension [y]	0.858 in
Size / Dimension [z]	84.9 mm
Size / Dimension [z]	3.343 in
Style	Top Entry

09140010 Series

Part	Features	Lock Location	Connector Type	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Style	Housing Material	Ingress Protection	Housing Color
HARTING Technology Group 09140010301	Grounding Terminal	Locking Clip (1) on Base Bottom	Base - Panel Mount	Nickel	125 °C	-40 °C	26.9 mm	49 mm	1.929 in	35 mm	1.059 in	1.378 "	Bottom Entry	Zinc Die Cast	IP65 - Dust Tight Water Resistant
HARTING Technology Group 09140010420		Side Latch Lock on Hood	Hood		85 °C	-40 °C	77.9 mm	60 mm	2.362 in	21.8 mm	3.067 in	0.858 in	Top Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010430		Side Latch Lock on Hood	Hood		85 °C	-40 °C	84.9 mm	60 mm	2.362 in	21.8 mm	3.343 in	0.858 in	Top Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Green
HARTING Technology Group 09140010720	Cable to Cable	Side Latch Lock on Hood	Hood - Coupling		85 °C	-40 °C	67.1 mm	56.3 mm	2.217 "	24.4 mm	2.642 "	0.961 "	Bottom Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010422		Side Latch Lock on Hood	Hood		85 °C	-40 °C	78.9 mm	60 mm	2.362 in	21.8 mm	3.106 in	0.858 in	Top Entry	Polycarbonate (PC)		Gray
HARTING Technology Group 09140010421		Side Latch Lock on Hood	Hood		85 °C	-40 °C	77.9 mm	60 mm	2.362 in	21.8 mm	3.067 in	0.858 in	Top Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010423		Side Latch Lock on Hood	Hood		85 °C	-40 °C	78.9 mm	60 mm	2.362 in	21.8 mm	3.106 in	0.858 in	Top Entry	Polycarbonate (PC)		Gray
HARTING Technology Group 09140010330		Side Latch Lock on Hood	Base - Panel Mount		85 °C	-40 °C	36.9 mm	54 mm	2.126 in	21.8 mm	1.453 in	0.858 in	Bottom Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Green
HARTING Technology Group 09140010321		Side Latch Lock on Hood	Base - Panel Mount		85 °C	-40 °C	36.9 mm	54 mm	2.126 in	21.8 mm	1.453 in	0.858 in	Bottom Entry	Polycarbonate (PC)	IP65 - Dust Tight Water Resistant	Gray
HARTING Technology Group 09140010303		Locking Clip (1) on Base Bottom	Base - Panel Mount				27 mm	49 mm	1.929 in	34.6 mm	1.063 "	1.362 "	Bottom Entry			Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.37
		10	$ 17.07
		25	$ 15.27
		50	$ 14.10
		100	$ 13.07
		250	$ 11.91
		500	$ 11.16
Newark	Each	1	$ 17.97
		10	$ 16.36
		25	$ 16.08
		50	$ 15.25
		100	$ 14.19
		250	$ 12.95

Description

General part information

09140010 Series

Hood Connector Top Entry IP65 - Dust Tight, Water Resistant
