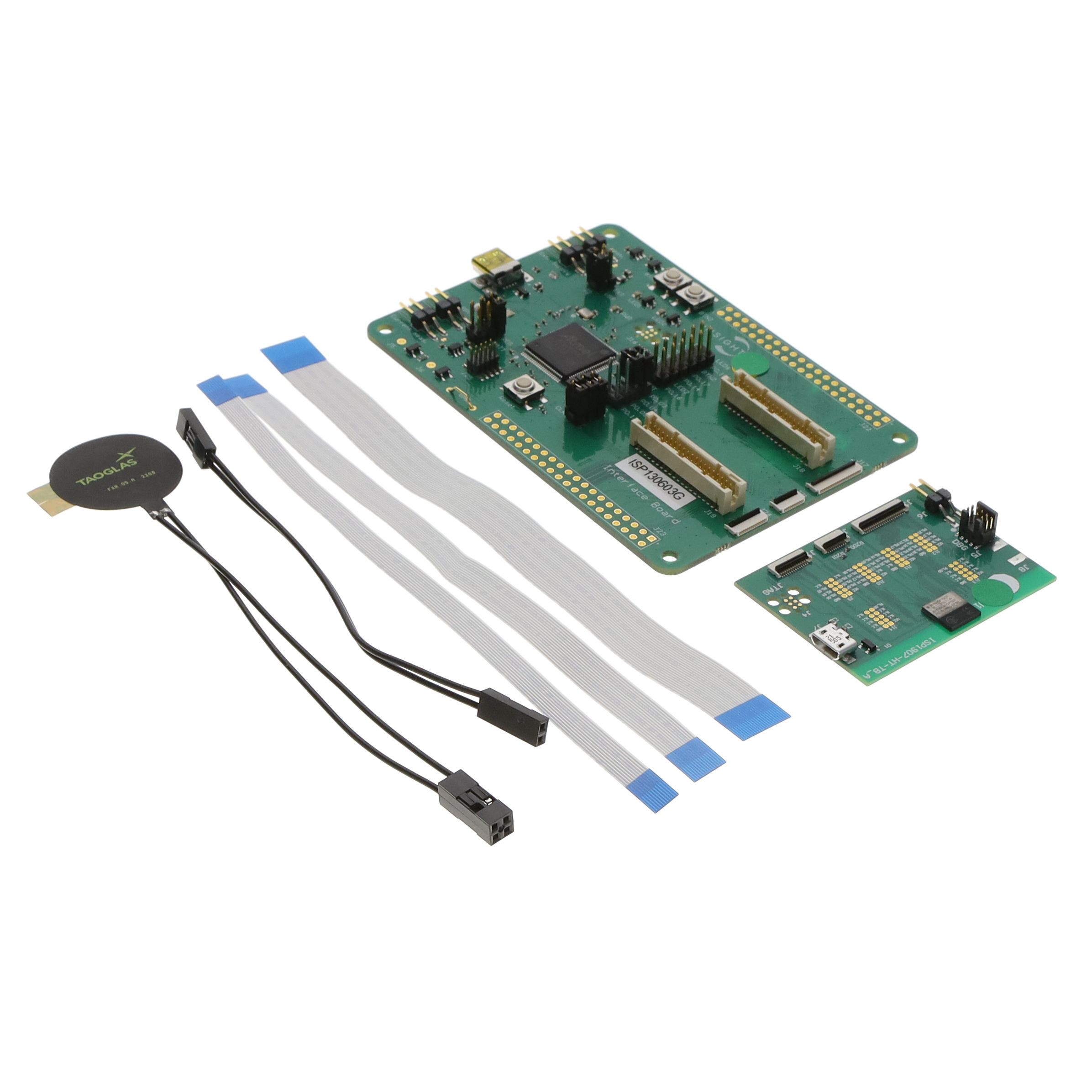

ISP1907-HT-EB

Active

Insight SIP

DEV.KIT: EVALUATION; BLUETOOTH: 5.1,BLE; COMP: NRF52811

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Guide for Nordic nRF52 Based Modules

ISP1907-HT-EB

Active

Insight SIP

DEV.KIT: EVALUATION; BLUETOOTH: 5.1,BLE; COMP: NRF52811

Deep-Dive with AI

DocumentsDatasheet Product Guide for Nordic nRF52 Based Modules

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISP1907-HT-EB

For Use With/Related Products	ISP1907
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver, Bluetooth® 5.x (BLE)

ISP1907 Series

Part	Power - Output	Protocol	Current - Receiving	Mounting Type	Sensitivity	Data Rate	Serial Interfaces	Utilized IC / Part	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Max]	Frequency [Min]	RF Family/Standard	Package / Case	Current - Transmitting [Min]	Current - Transmitting [Max]	Antenna Type	Frequency	Supplied Contents	For Use With/Related Products	Type
Insight SIP ISP1907-LL-JT	4 dBm	ANT® Bluetooth v5.1 Thread Zigbee®	6.1 mA	Surface Mount	-104 dBm	2 Mbps	ADC GPIO I2C PDM SPI UART	nRF52811	1.5 Mb 24 kB	3.6 V	1.7 V	85 °C	-40 °C	2.5 GHz	2.36 GHz	802.15.4 Bluetooth/ANT	62-SMD Module	3.4 mA	5.8 mA	Integrated Chip
Insight SIP ISP1907-LL-RS	4 dBm	ANT® Bluetooth v5.1 Thread Zigbee®	6.1 mA	Surface Mount	-104 dBm	2 Mbps	ADC GPIO I2C PDM SPI UART	nRF52811	1.5 Mb 24 kB	3.6 V	1.7 V	85 °C	-40 °C	2.5 GHz	2.36 GHz	802.15.4 Bluetooth/ANT	62-SMD Module	3.4 mA	5.8 mA	Integrated Chip
Insight SIP ISP1907-HT-RS	8 dBm	ANT® Bluetooth v5.1 Thread Zigbee®	6 mA	Surface Mount	-104 dBm	2 Mbps	ADC GPIO I2C PDM SPI UART USB	nRF52833	128 kB 512 kB	3.6 V	1.7 V	105 ░C	-40 °C	2.5 GHz	2.36 GHz	802.15.4 Bluetooth/ANT	62-SMD Module	3.5 mA	6.1 mA	Integrated Chip
Insight SIP ISP1907-LL-R2	4 dBm	ANT® Bluetooth v5.1 Thread Zigbee®	6.1 mA	Surface Mount	-104 dBm	2 Mbps	ADC GPIO I2C PDM SPI UART	nRF52811	1.5 Mb 24 kB	3.6 V	1.7 V	85 °C	-40 °C	2.5 GHz	2.36 GHz	802.15.4 Bluetooth/ANT	62-SMD Module	3.4 mA	5.8 mA	Integrated Chip
Insight SIP ISP1907-HT-EB																					2.4 GHz	Board(s)	ISP1907	Bluetooth® 5.x (BLE) Transceiver
Insight SIP ISP1907-LL-TB																					2.4 GHz	Board(s)	ISP1907	Bluetooth® 5.x (BLE) Transceiver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 203.00
TME	N/A	1	$ 236.91
