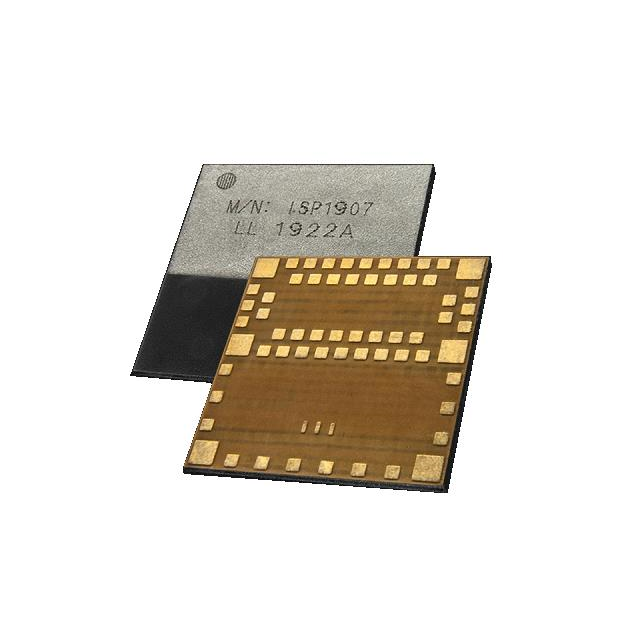

ISP1907-HT-RS
ActiveInsight SIP
RF TXRX MOD BT /ANT CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
ISP1907-HT-RS
ActiveInsight SIP
RF TXRX MOD BT /ANT CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISP1907-HT-RS |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving | 6 mA |
| Current - Transmitting [Max] | 6.1 mA |
| Current - Transmitting [Min] | 3.5 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 2.36 GHz |
| Memory Size | 128 kB, 512 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 62-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.1, ANT®, Thread, Zigbee® |
| RF Family/Standard | 802.15.4, Bluetooth/ANT |
| Sensitivity | -104 dBm |
| Serial Interfaces | PDM, GPIO, USB, I2C, ADC, SPI, UART |
| Utilized IC / Part | nRF52833 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.08 | |
| Digi-Reel® | 1 | $ 9.08 | ||
| Tape & Reel (TR) | 500 | $ 9.07 | ||
Description
General part information
ISP1907 Series
802.15.4, Bluetooth/ANT ANT®, Bluetooth v5.1, Thread, Zigbee® Transceiver Module 2.36GHz ~ 2.5GHz Integrated, Chip Surface Mount
