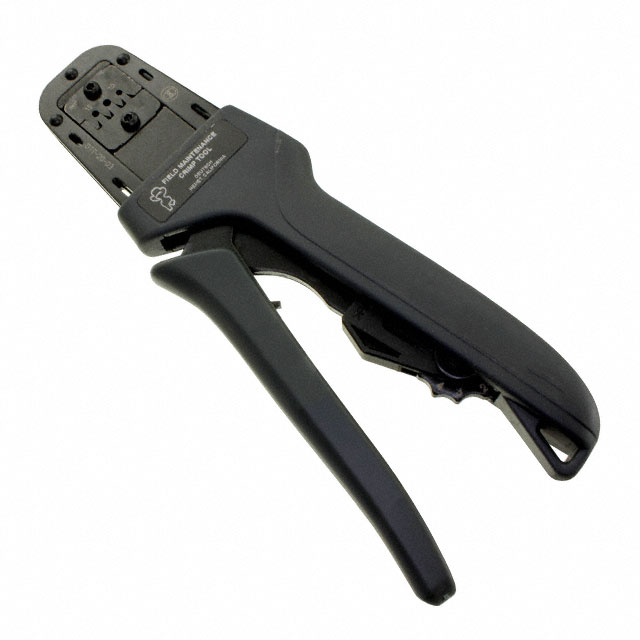

DTT-20-03

Active

TE Application Tooling

CRIMP TOOL

Search across all available documentation for this part.

Active

TE Application Tooling

CRIMP TOOL

Technical Specifications

Parameters and characteristics for this part

Specification	DTT-20-03

For Use With/Related Products	Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²

Part	Ratcheting	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Entry Location	For Use With/Related Products	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG
TE Application Tooling DTT-16-02	Ratchet	Hand Crimper	12 AWG	16 AWG	Side Entry	Contacts
TE Application Tooling DTT-20-03	Ratchet	Hand Crimper			Side Entry	Contacts	1 mm²	2.5 mm²
TE Application Tooling DTT-20-02	Ratchet	Hand Crimper	18 AWG	22 AWG	Side Entry	Contacts
TE Application Tooling DTT-20-00	Ratchet	Hand Crimper	16 AWG	20 AWG	Side Entry	Contacts
TE Application Tooling DTT-12-01	Ratchet	Hand Crimper			Side Entry	Contacts			10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hand Crimper Tool Contacts

Technical documentation and resources

No documents available
