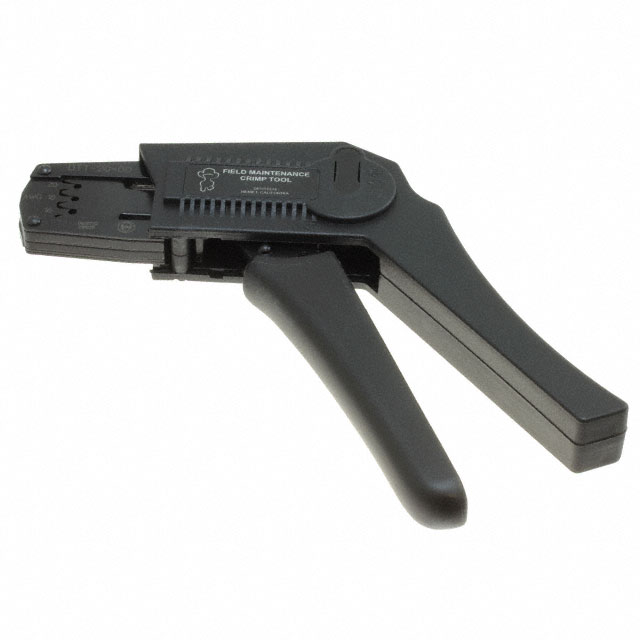

DTT-20-02

Obsolete

TE Application Tooling

CRIMP TOOL

Search across all available documentation for this part.

Obsolete

TE Application Tooling

CRIMP TOOL

Technical Specifications

Parameters and characteristics for this part

Specification	DTT-20-02

For Use With/Related Products	Contacts
Ratcheting	Ratchet
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	18 AWG

Part	Ratcheting	Tool Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Entry Location	For Use With/Related Products	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG
TE Application Tooling DTT-16-02	Ratchet	Hand Crimper	12 AWG	16 AWG	Side Entry	Contacts
TE Application Tooling DTT-20-03	Ratchet	Hand Crimper			Side Entry	Contacts	1 mm²	2.5 mm²
TE Application Tooling DTT-20-02	Ratchet	Hand Crimper	18 AWG	22 AWG	Side Entry	Contacts
TE Application Tooling DTT-20-00	Ratchet	Hand Crimper	16 AWG	20 AWG	Side Entry	Contacts
TE Application Tooling DTT-12-01	Ratchet	Hand Crimper			Side Entry	Contacts			10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Hand Crimper Tool Contacts
