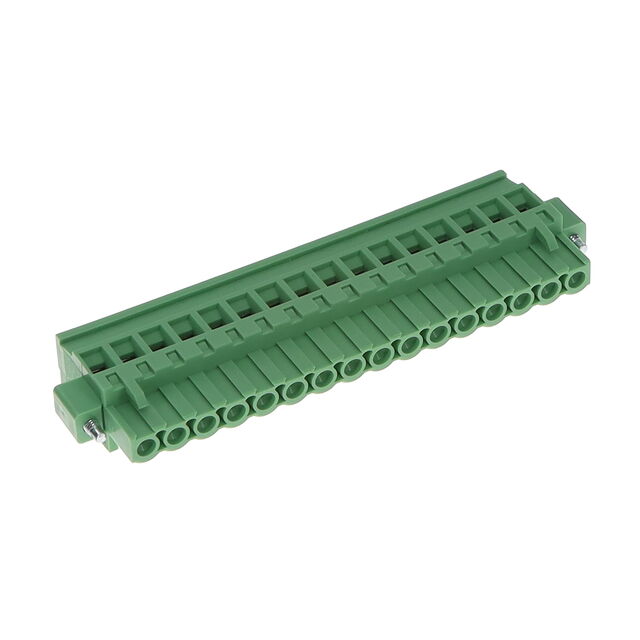

0395278016

Active

Molex

PLUGGABLE TERMINAL BLOCKS 5.00MM EURO PLUG VERT ME FWE GRN 16CKT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Specification

0395278016

Active

Molex

PLUGGABLE TERMINAL BLOCKS 5.00MM EURO PLUG VERT ME FWE GRN 16CKT

Deep-Dive with AI

DocumentsDatasheet Product Specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395278016

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	10 A
Features	Retention Latches (Wire Side), Mating Flange
Insulation Height	1.02 in
Insulation Height	25.91 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	16
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.34 Nm
Torque - Screw	3 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	5 mm

039527 Series

Part	Insulation Height	Insulation Height	Plug Wire Entry	Mounting Type	Current - UL	Pitch [x]	Pitch [x]	Number of Positions	Contact Material	Torque - Screw	Torque - Screw	Positions Per Level	Number of Levels	Material Flammability Rating	Color	Termination Style	Contact Mating Finish	Features	Voltage - UL	Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Strip Length	Screw Size	Number of Positions
Molex 0395278010	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	10	Phosphor Bronze	0.34 Nm	3 Lb-In	10	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395277014	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	14	Copper Alloy	0.34 Nm	3 Lb-In	14	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395272021	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	21	Copper Alloy	0.34 Nm	3 Lb-In	21	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395273004	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	4	Phosphor Bronze	0.34 Nm	3 Lb-In	4	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395272015	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	15	Copper Alloy	0.34 Nm	3 Lb-In	15	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395278016	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in		Phosphor Bronze	0.34 Nm	3 Lb-In	16	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm		16
Molex 0395273013	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	13	Phosphor Bronze	0.34 Nm	3 Lb-In	13	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395273024	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	24	Phosphor Bronze	0.34 Nm	3 Lb-In		1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395272011	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	11	Copper Alloy	0.34 Nm	3 Lb-In	11	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395278006	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	6	Phosphor Bronze	0.34 Nm	3 Lb-In	6	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.64
		10	$ 7.55
		25	$ 6.68
		50	$ 6.15
		126	$ 5.59
		252	$ 5.28
		504	$ 5.02
		1008	$ 4.83
Sager	N/A	504	$ 6.63
		1260	$ 5.62

Description

General part information

039527 Series

16 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
