0395278010

Active

Molex

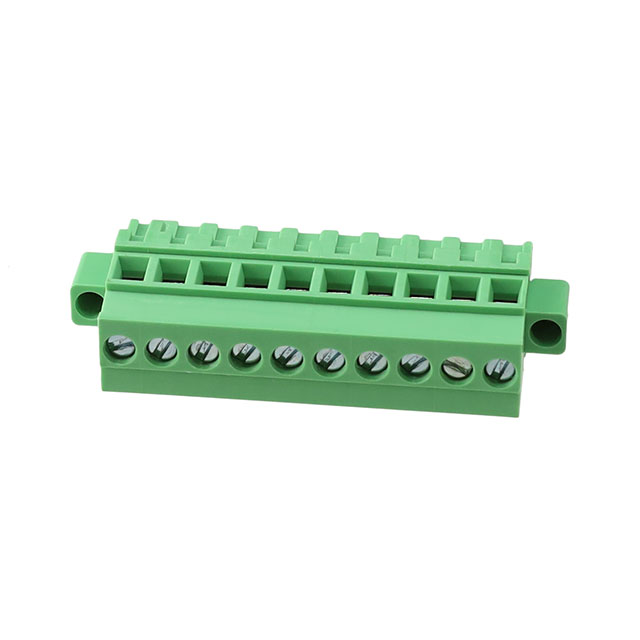

TERM BLOCK PLUG 10POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395278010

Active

Molex

TERM BLOCK PLUG 10POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395278010

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	10 A
Features	Retention Latches (Wire Side), Mating Flange
Insulation Height	1.02 in
Insulation Height	25.91 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Plug Wire Entry	90 °
Positions Per Level	10
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.34 Nm
Torque - Screw	3 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	5 mm

039527 Series

Part	Insulation Height	Insulation Height	Plug Wire Entry	Mounting Type	Current - UL	Pitch [x]	Pitch [x]	Number of Positions	Contact Material	Torque - Screw	Torque - Screw	Positions Per Level	Number of Levels	Material Flammability Rating	Color	Termination Style	Contact Mating Finish	Features	Voltage - UL	Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Strip Length	Screw Size	Number of Positions
Molex 0395278010	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	10	Phosphor Bronze	0.34 Nm	3 Lb-In	10	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395277014	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	14	Copper Alloy	0.34 Nm	3 Lb-In	14	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395272021	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	21	Copper Alloy	0.34 Nm	3 Lb-In	21	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395273004	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	4	Phosphor Bronze	0.34 Nm	3 Lb-In	4	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395272015	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	15	Copper Alloy	0.34 Nm	3 Lb-In	15	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395278016	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in		Phosphor Bronze	0.34 Nm	3 Lb-In	16	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm		16
Molex 0395273013	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	13	Phosphor Bronze	0.34 Nm	3 Lb-In	13	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395273024	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	24	Phosphor Bronze	0.34 Nm	3 Lb-In		1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm
Molex 0395272011	1.02 in	25.91 mm	270 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	11	Copper Alloy	0.34 Nm	3 Lb-In	11	1	UL94 V-0	Black	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Non-Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm	M3
Molex 0395278006	1.02 in	25.91 mm	90 °	Free Hanging (In-Line)	10 A	5 mm	0.197 in	6	Phosphor Bronze	0.34 Nm	3 Lb-In	6	1	UL94 V-0	Green	Screw - Rising Cage Clamp	Tin	Mating Flange Retention Latches (Wire Side)	300 V	Plug Female Sockets	-40 °C	105 ░C	12 AWG	26 AWG	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	648	$ 4.19

Description

General part information

039527 Series

10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)
