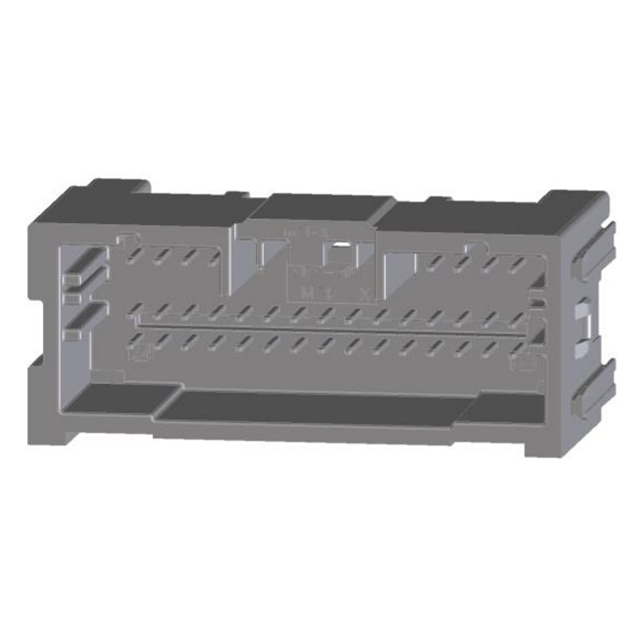

0349580383

Active

Molex

CONN SHROUDED HEADER (4 SIDES) HDR 38 POS 2MM SOLDER ST THRU-HOLE TRAY

Deep-Dive with AI

Search across all available documentation for this part.

0349580383

Active

Molex

CONN SHROUDED HEADER (4 SIDES) HDR 38 POS 2MM SOLDER ST THRU-HOLE TRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0349580383

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.07 mm
Contact Length - Post	0.121 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Blade
Current Rating (Amps)	Varies by Wire Gauge
Features	Board Guide
Insulation Color	Black
Insulation Height	0.697 in
Insulation Height	17.7 mm
Material Flammability Rating	UL94 HB
Mounting Type	Through Hole
Number of Positions	38
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

034958 Series

Part	Features	Connector Type	Number of Rows	Insulation Color	Applications	Contact Type	Contact Shape	Number of Positions	Number of Positions Loaded	Mounting Type	Style	Contact Finish - Post	Insulation Height	Insulation Height	Termination	Shrouding	Fastening Type	Contact Material	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating
Molex 0349587342	Board Guide	Header	3	Gray	Automotive	Male Blade	Rectangular	34	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349580383	Board Guide	Header	3	Black		Male Blade	Square	38	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall		Brass	Varies by Wire Gauge	3.07 mm	0.121 in	-40 °C	105 ░C	0.079 in	2 mm	UL94 HB
Molex 0349588380	Board Guide	Header	3	Black	Automotive	Male Blade	Rectangular	38	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349588341	Board Guide	Header	3	Gray	Automotive	Male Blade	Rectangular	34	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349588340	Board Guide	Header	3	Black	Automotive	Male Blade	Rectangular	34	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349587380	Board Guide	Header	3	Black	Automotive	Male Blade	Rectangular	38	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349580381	Board Guide	Header	3	Gray	Automotive	Male Blade	Rectangular	38	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349588382	Board Guide	Header	3	Gray	Automotive	Male Blade	Rectangular	38	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349587340	Board Guide	Header	3	Black	Automotive	Male Blade	Rectangular	34	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy
Molex 0349588381	Board Guide	Header	3	Gray	Automotive	Male Blade	Rectangular	38	All	Through Hole	Board to Cable/Wire	Tin	0.697 in	17.7 mm	Solder	Shrouded - 4 Wall	Latch Lock	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.81
		10	$ 3.35
		80	$ 2.67
		950	$ 2.21
		4900	$ 1.98

Description

General part information

034958 Series

Connector Header Through Hole 38 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
