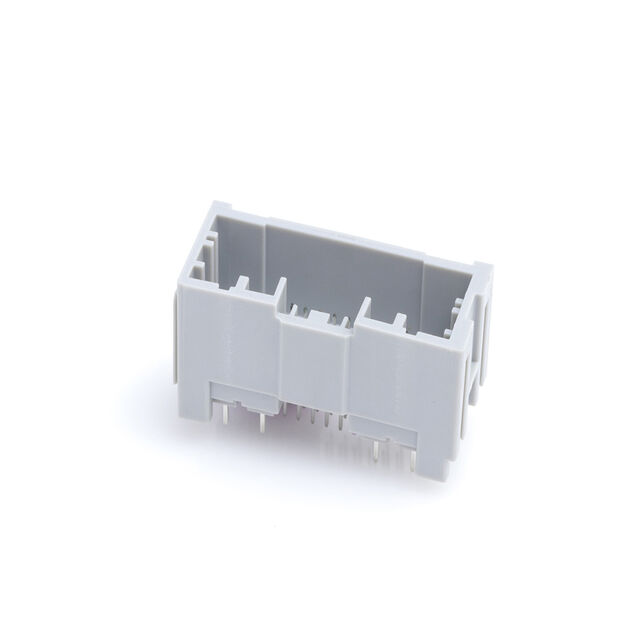

0349588341
ActiveMolex
CONN HEADER VERT 34POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0349588341
ActiveMolex
CONN HEADER VERT 34POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0349588341 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Latch Lock |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height | 0.697 in |
| Insulation Height | 17.7 mm |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
034958 Series
| Part | Features | Connector Type | Number of Rows | Insulation Color | Applications | Contact Type | Contact Shape | Number of Positions | Number of Positions Loaded | Mounting Type | Style | Contact Finish - Post | Insulation Height | Insulation Height | Termination | Shrouding | Fastening Type | Contact Material | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating [x] | Pitch - Mating [x] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Board Guide | Header | 3 | Gray | Automotive | Male Blade | Rectangular | 34 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Black | Male Blade | Square | 38 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Brass | Varies by Wire Gauge | 3.07 mm | 0.121 in | -40 °C | 105 ░C | 0.079 in | 2 mm | UL94 HB | ||
Molex | Board Guide | Header | 3 | Black | Automotive | Male Blade | Rectangular | 38 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Gray | Automotive | Male Blade | Rectangular | 34 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Black | Automotive | Male Blade | Rectangular | 34 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Black | Automotive | Male Blade | Rectangular | 38 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Gray | Automotive | Male Blade | Rectangular | 38 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Gray | Automotive | Male Blade | Rectangular | 38 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Black | Automotive | Male Blade | Rectangular | 34 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy | ||||||||
Molex | Board Guide | Header | 3 | Gray | Automotive | Male Blade | Rectangular | 38 | All | Through Hole | Board to Cable/Wire | Tin | 0.697 in | 17.7 mm | Solder | Shrouded - 4 Wall | Latch Lock | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 640 | $ 3.79 | |
Description
General part information
034958 Series
Connector Header Through Hole 34 position
